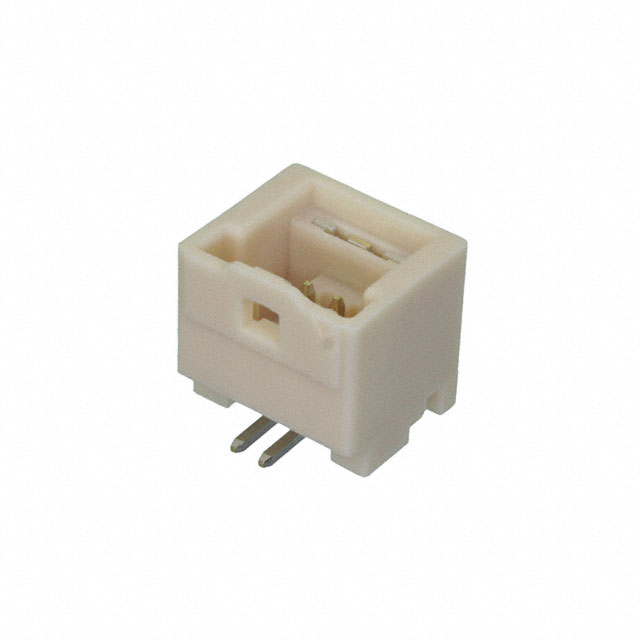

2016480020
Or copy the link below:
- Mfr.Part #
- 2016480020
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 2POS 1.5MM
- Stock
- 29,264
- In Stock ：
- 29,264
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Voltage - Rated :
- 100V
- Shrouding :
- Shrouded - 4 Wall
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Number of Positions Loaded :
- All
- Connector Type :
- Header
- Feature :
- Pick and Place, Solder Retention
- Material Flammability Rating :
- UL94 V-0
- Fastening Type :
- Latch Holder
- Current Rating (Amps) :
- Varies by WireGAuge
- Applications :
- GENERAL PURPOSE
- Factory Lead Time :
- 18 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 2
- Contact Type :
- Male Pin
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Packaging :
- Cut Tape (CT)
- Operating Temperature :
- -40°C~105°C
- Insulation Height :
- 0.354 9.00mm
- Pitch - Mating :
- 0.059 1.50mm
- Mounting Type :
- Surface Mount
- Contact Material :
- Brass
- Number of Rows :
- 1
- Contact Shape :
- Square
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- Insulation Color :
- Natural
- Series :
- Spot-On 1.5 201648
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- RoHS Status :
- ROHS3 Compliant
- Contact Finish - Mating :
- Tin
- Datasheets
- 2016480020
2016480020 Documents
Spot-On 1.5 201648 Series 1-Row Header Solder Brass Cut Tape (CT) Surface Mount Tin Polyamide (PA), Nylon, Glass Filled 2-Position Board to Cable/Wire 0.354 9.00mm Height
2016480020 Overview
The packaging is Header.Mounting type is Surface Mount.To package the product, we use a Cut Tape (CT) case.This product is from the Spot-On 1.5 201648 Series.A possible application is General Purpose.A number of advantages are provided by its Pick and Place, Solder Retention feature.Device runs at -40°C~105°C Operating Temperature.
2016480020 Features
Spot-On 1.5 201648 series
2016480020 Applications
There are a lot of Molex
2016480020 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
