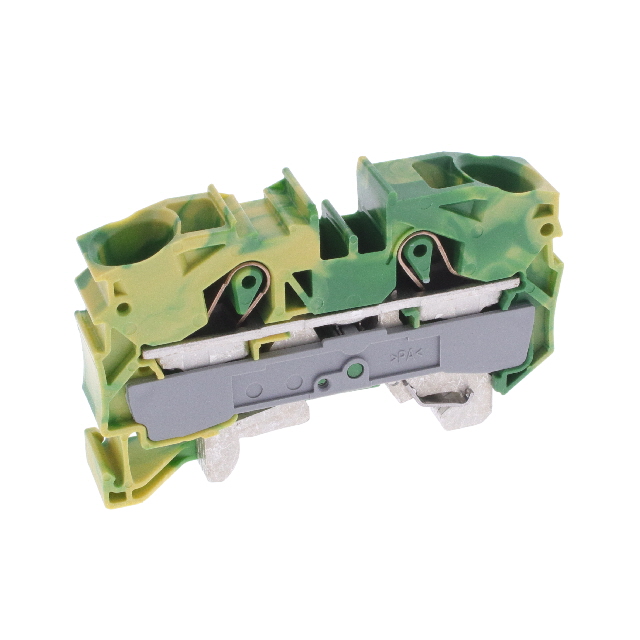

2016-1207

Share

Or copy the link below:

Mfr.Part #
2016-1207
Manufacturer
WAGO
Package / Case
Datasheet
Download
Description
2-CONDUCTOR GROUND TERMINAL BLOC
Stock
25
In Stock :
25

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
WAGO
Product Category :
Din Rail, Channel
Clamp width :
12mm
Cross section (inflexible) (max.) :
16mm²
Product Status :
Active
Connection :
-
Depth :
36.9
Connectable conductor cross section solid-core :
2.5 - 16
Voltage Rating :
800 V
Housing Color :
Green/yellow
Type :
Grounding Block
Color :
Green, Yellow
Wire Gauge :
6-20(AWG)
Number of Contacts :
2(POS)
Terminal - Width :
12.0mm
Mounting Style :
T DIN RAIL
Contact Pitch (mm) :
Not Required(mm)
Disconnect Type :
-
Rated Voltage :
800V
Rated Current :
76A
Current Rating (Max) :
57(A)
Connectable conductor cross section multi-wired :
0.5 - 16
Stripping Length :
18mm ~ 20mm
Manufacturer :
Wago
Termination Style :
Push In, Spring
Connectable conductor cross section fine-strand without cable end sleeve :
0.5 - 25
Wire Gauge or Range - mm² :
6-16mm²
Nominal current (details) :
76A
Cross section (flexible) (min.) :
0.50mm²
No. of rows :
1
Termination Method :
Push In
Length :
70
Manufacturer part # :
2016-1207
Base Product Number :
2016-120
Wire Gauge or Range - AWG :
6-14 AWG
Material Flammability Rating :
-
Number of Contact Rows :
2
Number of Levels :
1
Pins per row :
2
Cross section (inflexible) (min.) :
0.50mm²
Material - Insulation :
Polyamide (PA66), Nylon 6/6
Nominal current - rounded value :
76A
Cross section (flexible) (max.) :
24mm²
Product Length (mm) :
70(mm)
Current Rating :
85A
Inflammability class of insulation material according to with UL94 :
V0
Packaging :
Box
Series :
2016
Fuse Type :
-
Product Depth (mm) :
12(mm)
Content :
1pc(s)
Nominal current :
76A
RoHS :
yes
Height :
69.8
AWG (min.) :
20
Rad Hardened :
No
Voltage - IEC :
-
Width :
12mm
Housing Material :
Polyamide 6/6
Mounting Type :
DIN Rail
Number of Circuits :
1
Configuration :
Terre
Min. stripping length :
18mm
AWG max. :
4
Number of Positions :
2
Stripping length (max.) :
20mm
Features :
-
Wire Size :
20 → 4 AWG
Product Height (mm) :
37(mm)
Package :
Bulk
Connectable conductor cross section fine-strand with cable end sleeve :
2.5 - 16
Voltage - UL :
-
Datasheets
2016-1207
Introducing Din Rail, Channel WAGO 2016-1207 from Chip IC,where excellence meets affordability. This product stands out with its Type:Grounding Block, Mounting Type:DIN Rail, 2016-1207 pinout, 2016-1207 datasheet PDF, 2016-1207 amp .Beyond Din Rail, Channel WAGO 2016-1207 ,we also offer 1078960, 3208155, 3031212, Our vast inventory has you covered. Contact us now for immediate solutions.
