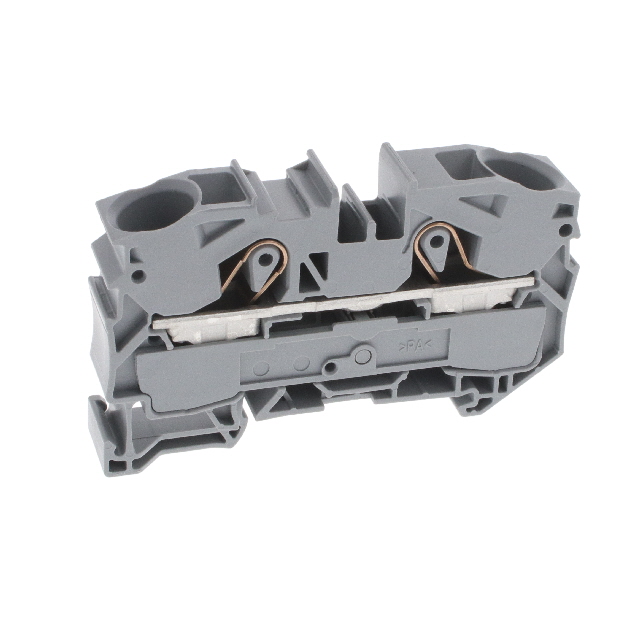

2016-1201

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Nominal current (details) :

76A

Current - IEC :

90 A

Mounting Type :

DIN Rail

Disconnect Type :

-

Material Flammability Rating :

-

Number of Circuits :

1

Series :

2016

Type :

2-conductors

Cross section (inflexible) (max.) :

16mm²

Stripping Length :

18mm ~ 20mm

AWG max. :

4

Number of Levels :

1

Product Length (mm) :

70(mm)

Fuse Type :

-

Housing Material :

Polyamide 6/6

Cross section (flexible) (max.) :

24mm²

Cross section (flexible) (min.) :

0.50mm²

Number of Positions :

2

Number of Contact Rows :

2

Termination Style :

Push In, Spring

Rad Hardened :

No

Current Rating :

85A

Number of Contacts :

2(POS)

Operating Voltage (Max) :

800V

Manufacturer part # :

2016-1201

Terminal - Width :

12.0mm

Rated Current :

76A

Cross section (inflexible) (min.) :

0.50mm²

Current Rating (Max) :

70(A)

Color :

Gray

Current - UL :

85 A

Nominal current - rounded value :

76A

Product Height (mm) :

37(mm)

Mounting Style :

T DIN RAIL

AWG (min.) :

20

Content :

1pc(s)

Nominal current :

76A

RoHS :

yes

Termination Method :

Push In

Rated Voltage :

800V

No. of rows :

1

Width :

12mm

Product Depth (mm) :

12(mm)

Connection :

-

Product Status :

Active

Housing Color :

Gray

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Package :

Bulk

Voltage Rating :

800 V

Features :

-

Manufacturer :

Wago

Clamp width :

12mm

Wire Gauge :

6-20(AWG)

Packaging :

Box

Stripping length (max.) :

20mm

Min. stripping length :

18mm

Base Product Number :

2016-120

Configuration :

L

Voltage - IEC :

800V

Nominal voltage :

800V

Voltage - UL :

600V

Pins per row :

2

Wire Gauge or Range - mm² :

6-16mm²

Wire Gauge or Range - AWG :

6-14 AWG
