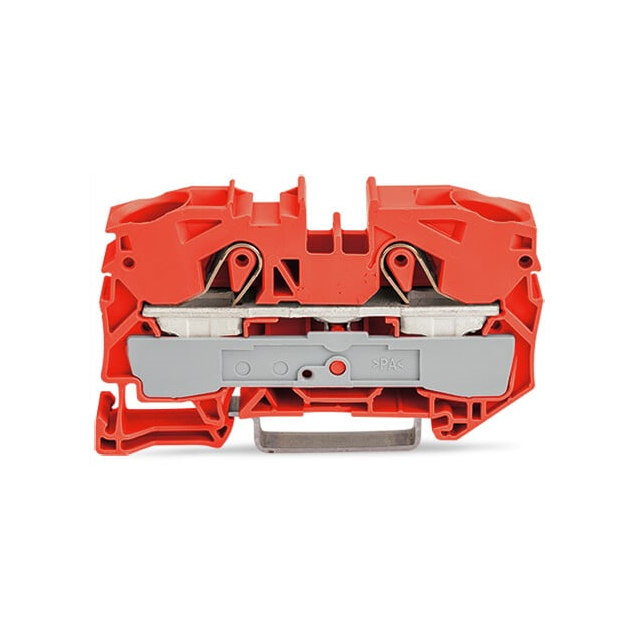

2016-1202

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Length :

70

ECCN (US) :

EAR99

Disconnect Type :

-

Connectable conductor cross section fine-strand with cable end sleeve :

2.5 - 16

Connectable conductor cross section multi-wired :

0.5 - 16

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Material Flammability Rating :

UL94 V-0

Manufacturer :

Wago

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 25

Rated current In :

76

Termination Style :

Push In, Spring

Depth :

36.9

Type :

Standard Block

Connectable conductor cross section solid-core :

2.5 - 16

Fuse Type :

-

Height :

69.8

Automotive :

No

Product Status :

Active

Number of Circuits :

1

Series :

TOPJOB®S

Voltage - UL :

600V

Voltage - IEC :

800V

Current - UL :

85 A

Color :

Orange

EU RoHS :

Compliant

Mounting Type :

DIN Rail

Inflammability class of insulation material according to with UL94 :

V0

Width :

12

Wire Gauge or Range - mm² :

0.5-16mm²

Stripping Length :

18mm ~ 20mm

PPAP :

No

Number of Levels :

1

Number of Positions :

2

Features :

-

Current - IEC :

76 A

Terminal - Width :

12.0mm

Package :

Box

Wire Gauge or Range - AWG :

6-20 AWG

HTS :

8536.90.40.00

RoHS :

yes
