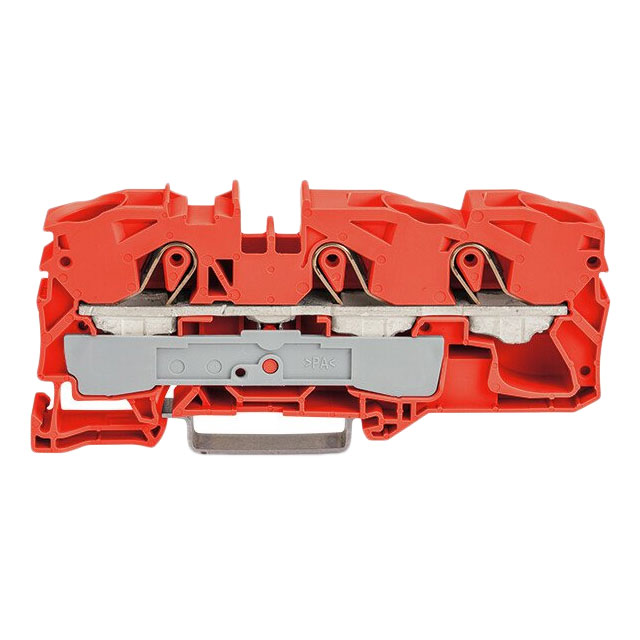

2016-1302

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Fuse Type :

-

Number of Positions :

3

Height :

91.8

Manufacturer :

Wago

EU RoHS :

Compliant

Wire Gauge or Range - mm² :

0.5-16mm²

Voltage - IEC :

800V

Connectable conductor cross section solid-core :

2.5 - 16

Current - UL :

85 A

Number of Circuits :

1

Voltage - UL :

600V

PPAP :

No

Disconnect Type :

-

Type :

Standard Block

ECCN (US) :

EAR99

Series :

TOPJOB®S

RoHS :

yes

Rated current In :

76

Wire Gauge or Range - AWG :

6-20 AWG

Connectable conductor cross section multi-wired :

0.5 - 16

Termination Style :

Push In, Spring

Package :

Box

Depth :

36.9

Features :

-

Terminal - Width :

12.0mm

Connectable conductor cross section fine-strand with cable end sleeve :

2.5 - 16

Width :

12

Product Status :

Active

Material Flammability Rating :

UL94 V-0

Number of Levels :

1

Mounting Type :

DIN Rail

Color :

Orange

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 25

Length :

92

Current - IEC :

90 A

Inflammability class of insulation material according to with UL94 :

V0

HTS :

8536.90.40.00

Automotive :

No

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Stripping Length :

18mm ~ 20mm
