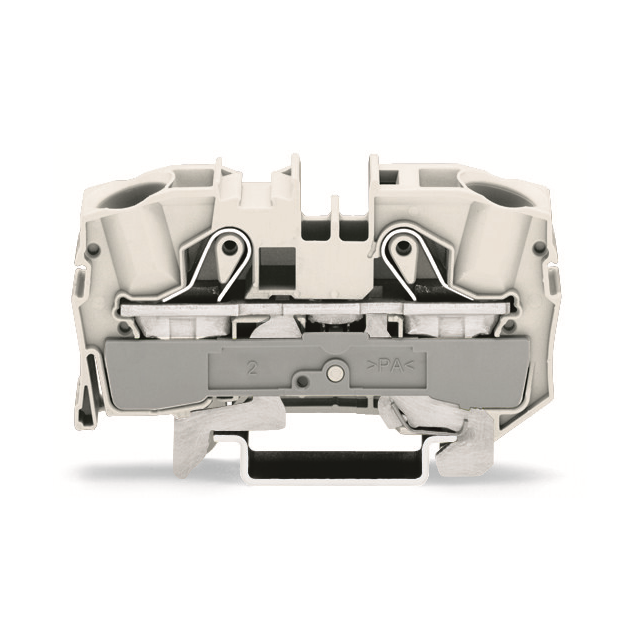

2016-1208

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

EU RoHS :

Compliant

Type :

Standard Block

PPAP :

No

Connectable conductor cross section fine-strand with cable end sleeve :

2.5 - 16

Number of Circuits :

1

Height :

69.8

Package :

Box

Wire Gauge or Range - mm² :

0.5-16mm²

Material Flammability Rating :

UL94 V-0

Inflammability class of insulation material according to with UL94 :

V0

Mounting Type :

DIN Rail

Length :

69.8

Stripping Length :

18mm ~ 20mm

Color :

White

HTS :

8536.90.40.00

Features :

-

Wire Gauge or Range - AWG :

6-20 AWG

Voltage - IEC :

-

Number of Levels :

1

Connectable conductor cross section solid-core :

2.5 - 16

RoHS :

yes

Connectable conductor cross section multi-wired :

0.5 - 16

Disconnect Type :

-

Fuse Type :

-

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Depth :

36.9

Product Status :

Active

Manufacturer :

Wago

Automotive :

No

Width :

12

Termination Style :

Push In, Spring

Terminal - Width :

12.0mm

ECCN (US) :

EAR99

Voltage - UL :

-

Series :

TOPJOB®S

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 258

Number of Positions :

2
