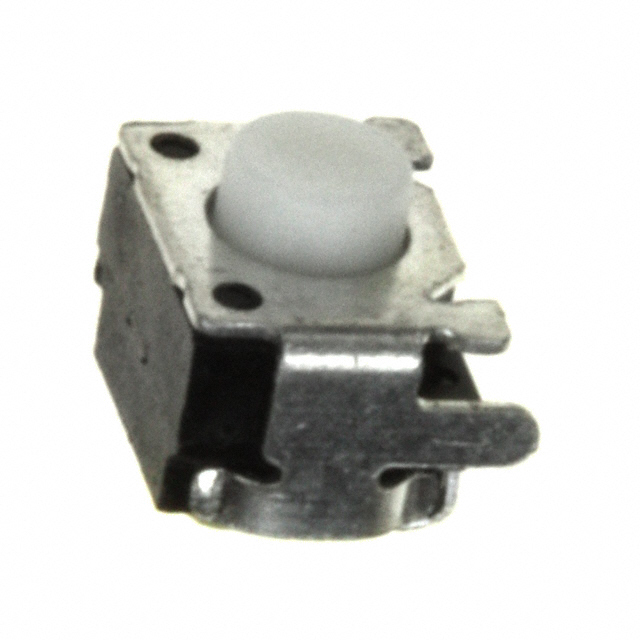

TL3340AF160QG
Or copy the link below:
- Mfr.Part #
- TL3340AF160QG
- Manufacturer
- E-Switch
- Package / Case
- SMD/SMT
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 12V
- Stock
- 21
- In Stock ：
- 21
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- Published :
- 2008
- Contact Current(DC)-Max :
- 0.05A
- Termination Style :
- Gull wing
- Circuit :
- SPST-NO
- Operating Force :
- 160gf
- Packaging :
- Tape and Reel (TR)
- Contact Material :
- Silver, Stainless Steel
- Operating Temperature :
- -35°C~85°C
- Series :
- TL3340
- Lead Free :
- Lead Free
- Termination :
- Gull wing
- Color :
- White
- JESD-609 Code :
- e4
- Max Voltage Rating (DC) :
- 12V
- Housing Material :
- Polyphthalamide
- Mechanical Life :
- 100,000 Cycles
- Contact Resistance :
- 500MOhm
- Actuator Orientation :
- Side Actuated
- Contact Current Rating :
- 50mA
- Factory Lead Time :
- 11 Weeks
- Voltage - Rated DC :
- 12V
- Orientation :
- RIGHT ANGLE
- Package / Case :
- SMD/SMT
- Switch Function :
- Off-Mom
- Mount :
- Surface Mount
- Body Height :
- 3.3mm
- Contact Plating :
- Silver, Stainless Steel
- Number of Switches :
- 1
- Contact (DC) Max Rating R Load :
- .05A@12VDC
- Switch Travel :
- 0.20mm
- Body Breadth :
- 3.4 mm
- Actuator Type :
- Standard
- Illumination Type :
- Illuminated, Non-Illuminated
- REACH SVHC :
- No SVHC
- RoHS Status :
- ROHS3 Compliant
- Throw Configuration :
- SPST
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- HTS Code :
- 8536.50.90.40
- Current Rating :
- 50mA
- Electrical Life :
- 100000 cycles
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Surface Mount, Right Angle
- Actuator Material :
- Polyphthalamide (PPA)
- Outline :
- 4.00mm x 3.30mm
- ECCN Code :
- EAR99
- Illumination :
- Non-Illuminated
- Actuator Length, Right Angle :
- 3.40mm
- Terminal Finish :
- Silver (Ag)
- Body Length or Diameter :
- 4.49mm
- Switch Type :
- KEYPAD SWITCH
- Actuator Length :
- 850μm
- Datasheets
- TL3340AF160QG
TL3340AF160QG Documents
TL3340AF160QG datasheet pdf and Tactile Switches product details from E-Switch stock available at
Features
* Side actuated
* Round button
* Surface mount
* Rated for 50mA at 12VDC
* Force of 160 grams
Application
The E-Switch TL3340AF160QG is suitable for a variety of applications, including consumer electronics, automotive, medical, and industrial. It is ideal for applications that require a tactile switch with a low profile and a high actuation force.
