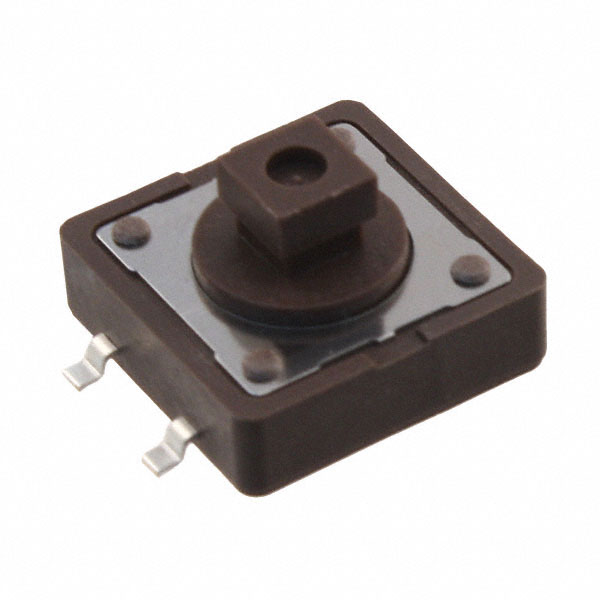

TL3300AF160Q
Or copy the link below:
- Mfr.Part #
- TL3300AF160Q
- Manufacturer
- E-Switch
- Package / Case
- SMD/SMT
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 12V
- Stock
- 2,188
- In Stock ：
- 2,188
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- Contact (DC) Max Rating R Load :
- 0.05A@12VDC
- Insulation Resistance :
- 100000000Ohm
- Actuator Travel :
- 0.3556 mm
- Actuator Length :
- 0.118 inch
- Factory Lead Time :
- 11 Weeks
- Contact Current(DC)-Max :
- 0.05A
- Switch Function :
- Off-Mom
- Body Breadth :
- 11.9888 mm
- Actuator Type :
- Plunger for Cap
- Outline :
- 12.00mm x 12.00mm
- RoHS Status :
- ROHS3 Compliant
- Switch Type :
- KEYPAD SWITCH
- Dielectric Withstanding Voltage :
- 250VAC V
- Contact Function :
- OFF-(ON)
- Actuator Height off PCB, Vertical :
- 7.30mm
- Published :
- 2010
- Actuator Orientation :
- Top Actuated
- Series :
- TL3300
- Mounting Type :
- Surface Mount
- Illumination :
- Non-Illuminated
- Operating Temperature :
- -25°C~70°C
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- Contact Plating :
- Silver
- Termination :
- Gull wing
- Packaging :
- Tape and Reel (TR)
- Body Length or Diameter :
- 11.9888mm
- Termination Style :
- Gull wing
- Body Height :
- 4.2926mm
- Package / Case :
- SMD/SMT
- PCB Hole Count :
- 4
- Electrical Life :
- 200000 Cycle(s)
- Operating Force :
- 160gf
- Current Rating :
- 50mA
- Contact Resistance :
- 0.1mOhm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated DC :
- 12V
- Mechanical Life :
- 200,000 Cycles
- ECCN Code :
- EAR99
- Mount :
- Surface Mount
- Switch Travel :
- 0.35mm
- Throw Configuration :
- SPST
- Circuit :
- SPST-NO
- Datasheets
- TL3300AF160Q
