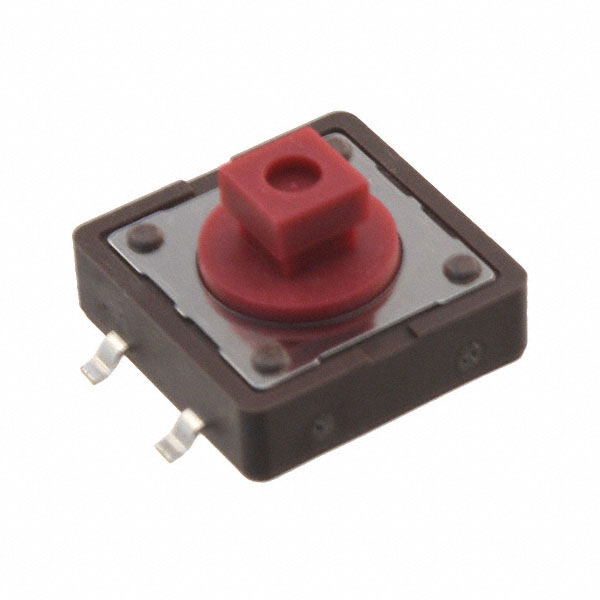

TL3300AF260Q
Or copy the link below:
- Mfr.Part #
- TL3300AF260Q
- Manufacturer
- E-Switch
- Package / Case
- SMD/SMT
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 12V
- Stock
- 841
- In Stock ：
- 841
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- Published :
- 2010
- Contact Resistance :
- 0.1mOhm
- Actuator Travel :
- 0.3556 mm
- Body Length or Diameter :
- 11.9888mm
- Operating Force :
- 260gf
- Termination Style :
- Gull wing
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Electrical Life :
- 200000 Cycle(s)
- Factory Lead Time :
- 11 Weeks
- Termination :
- Gull wing
- Contact Current(DC)-Max :
- 0.05A
- Series :
- TL3300
- Mechanical Life :
- 100,000 Cycles
- Circuit :
- SPST-NO
- Insulation Resistance :
- 100000000Ohm
- ECCN Code :
- EAR99
- Contact Function :
- OFF-(ON)
- Dielectric Withstanding Voltage :
- 250VAC V
- RoHS Status :
- ROHS3 Compliant
- Actuator Type :
- Plunger for Cap
- Actuator Height off PCB, Vertical :
- 7.30mm
- Mount :
- Surface Mount
- Voltage - Rated DC :
- 12V
- Switch Type :
- KEYPAD SWITCH
- Actuator Orientation :
- Top Actuated
- Packaging :
- Tape and Reel (TR)
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- Package / Case :
- SMD/SMT
- Actuator Length :
- 0.149 inch
- Switch Travel :
- 0.35mm
- Contact Plating :
- Silver
- Switch Function :
- Off-Mom
- Body Height :
- 3.5052mm
- Current Rating :
- 50mA
- Mounting Type :
- Surface Mount
- PCB Hole Count :
- 4
- Contact (DC) Max Rating R Load :
- 0.05A@12VDC
- Operating Temperature :
- -25°C~70°C
- Throw Configuration :
- SPST
- Illumination :
- Non-Illuminated
- Outline :
- 12.00mm x 12.00mm
- Actuator Color :
- Red
- Body Breadth :
- 11.9888 mm
- Datasheets
- TL3300AF260Q
TL3300AF260Q Documents
TL3300AF260Q datasheet pdf and Tactile Switches product details from E-Switch stock available at
