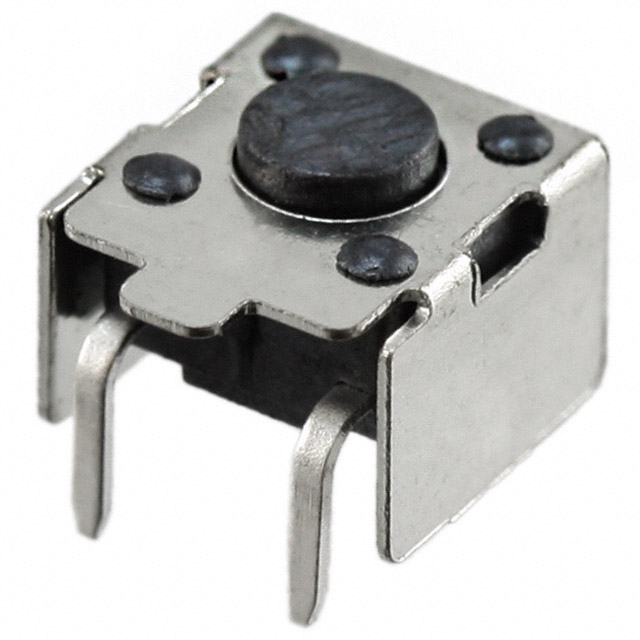

TL3320AF160Q
Or copy the link below:
- Mfr.Part #
- TL3320AF160Q
- Manufacturer
- E-Switch
- Package / Case
- SMD/SMT
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 12V
- Stock
- 16,473
- In Stock ：
- 16,473
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- Published :
- 2006
- Mechanical Life :
- 80,000 Cycles
- Lead Free :
- Lead Free
- Mounting Type :
- Surface Mount, Right Angle
- Mount :
- Surface Mount
- HTS Code :
- 8536.50.90.40
- Illumination :
- Non-Illuminated
- Actuator Type :
- Standard
- Switch Travel :
- 0.25mm
- Switch Type :
- KEYPAD SWITCH
- Outline :
- 7.10mm x 6.35mm
- Contact (DC) Max Rating R Load :
- .05A@12VDC
- Current Rating :
- 50mA
- Electrical Life :
- 80000 cycles
- Circuit :
- SPST-NO
- Contact Resistance :
- 100MOhm
- Throw Configuration :
- SPST
- Operating Force :
- 160gf
- Contact Current(DC)-Max :
- 0.05A
- Termination :
- Gull wing
- Actuator Material :
- Polyamide (PA), Nylon
- Switch Function :
- Off-Mom
- Voltage - Rated DC :
- 12V
- Series :
- TL3320
- ECCN Code :
- EAR99
- Number of Switches :
- 1
- Contact Material :
- Silver
- Actuator Length :
- 850μm
- Package / Case :
- SMD/SMT
- RoHS Status :
- RoHS Compliant
- Actuator Orientation :
- Side Actuated
- Reach Compliance Code :
- Unknown
- Body Length or Diameter :
- 7.1mm
- Termination Style :
- Gull wing
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- Operating Temperature :
- -20°C~70°C
- Packaging :
- Tape and Reel (TR)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Voltage Rating (DC) :
- 12V
- Orientation :
- RIGHT ANGLE
- Actuator Length, Right Angle :
- 3.15mm
- Body Breadth :
- 3.6 mm
- Datasheets
- TL3320AF160Q
