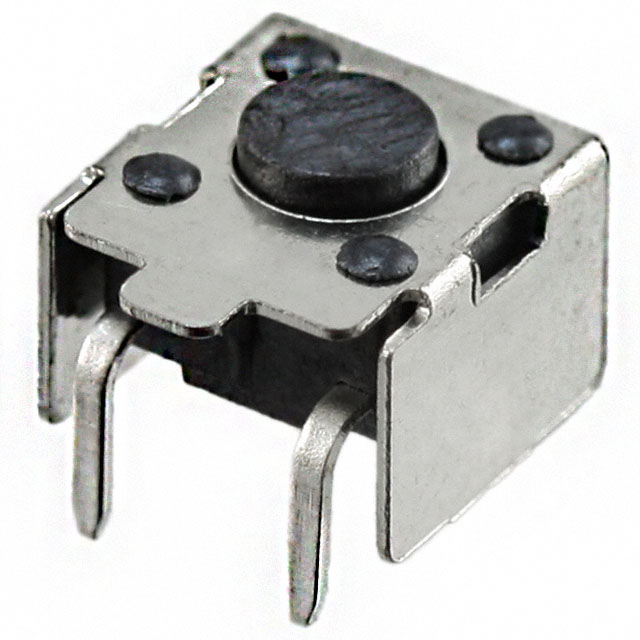

TL3320AF130Q

Manufacturer :

E-Switch

Product Category :

Termination Style :

Gull wing

Circuit :

SPST-NO

Actuator Material :

Polyamide (PA), Nylon

Contact (DC) Max Rating R Load :

.05A@12VDC

Contact Current(DC)-Max :

0.05A

Package / Case :

SMD/SMT

Mounting Type :

Surface Mount, Right Angle

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Switch Travel :

0.25mm

Switch Type :

KEYPAD SWITCH

Switch Function :

Off-Mom

Body Length or Diameter :

7.1mm

Voltage - Rated DC :

12V

Outline :

7.10mm x 6.35mm

Current Rating :

15mA

Throw Configuration :

SPST

Actuator Orientation :

Side Actuated

Series :

TL3320

Operating Temperature :

-20°C~70°C

JESD-609 Code :

e4

ECCN Code :

EAR99

Published :

2006

Packaging :

Tape and Reel (TR)

Operating Force :

130gf

Contact Plating :

Silver

Actuator Type :

Standard

Illumination :

Non-Illuminated

Contact Rating @ Voltage :

0.05A @ 12VDC

Actuator Length, Right Angle :

3.15mm

HTS Code :

8536.50.90.40

Electrical Life :

80000 Cycle(s)

Number of Switches :

1

Termination :

Gull wing

RoHS Status :

RoHS Compliant

Mechanical Life :

80,000 Cycles

Mount :

Surface Mount

Body Breadth :

3.6 mm

Lead Free :

Lead Free
