TL3315NF160Q
Or copy the link below:
- Mfr.Part #
- TL3315NF160Q
- Manufacturer
- E-Switch
- Package / Case
- SMD/SMT
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 15V
- Stock
- 16,662
- In Stock ：
- 16,662
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- Actuator Length :
- 0m
- Circuit :
- SPST-NO
- Number of Switches :
- 1
- Contact Current(DC)-Max :
- 0.05A
- Packing Method :
- Tape and Reel
- Insulation Resistance :
- 50000000Ohm
- Mounting Type :
- Surface Mount
- Actuator Orientation :
- Top Actuated
- Lead Free :
- Lead Free
- Operating Temperature :
- -20°C~70°C
- Throw Configuration :
- SPST
- Termination Style :
- Gull wing
- Package / Case :
- SMD/SMT
- Packaging :
- Tape and Reel (TR)
- Termination :
- Gull wing
- Switch Function :
- Off-Mom
- Body Height :
- 0.55mm
- Body Breadth :
- 4.5 mm
- Factory Lead Time :
- 11 Weeks
- Number of Pins :
- 6
- Mechanical Life :
- 500,000 Cycles
- Max Voltage Rating (DC) :
- 15V
- Contact Material :
- Silver
- Contact (DC) Max Rating R Load :
- .05A@15VDC
- Orientation :
- Straight
- Actuator Travel :
- 0.2 mm
- Illumination Type :
- Illuminated, Non-Illuminated
- Series :
- TL3315
- Switch Travel :
- 0.20mm
- Contact Resistance :
- 200mOhm
- Actuator Type :
- Snap Dome
- Operating Force :
- 160gf
- Electrical Life :
- 500000 cycles
- ECCN Code :
- EAR99
- Current Rating :
- 50mA
- Color :
- Yellow
- REACH SVHC :
- No SVHC
- Outline :
- 4.50mm x 4.50mm
- Published :
- 2008
- Voltage - Rated DC :
- 15V
- JESD-609 Code :
- e4
- Switch Type :
- KEYPAD SWITCH
- Actuator Height off PCB, Vertical :
- 0.55mm
- Contact Rating @ Voltage :
- 0.05A @ 15VDC
- Contact Current Rating :
- 50mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Illumination :
- Non-Illuminated
- Mount :
- Surface Mount
- Body Length or Diameter :
- 4.5mm
- Dielectric Withstanding Voltage :
- 250VAC V
- Datasheets
- TL3315NF160Q
TL3315NF160Q Documents
TL3315NF160Q datasheet pdf and Tactile Switches product details from E-Switch stock available at

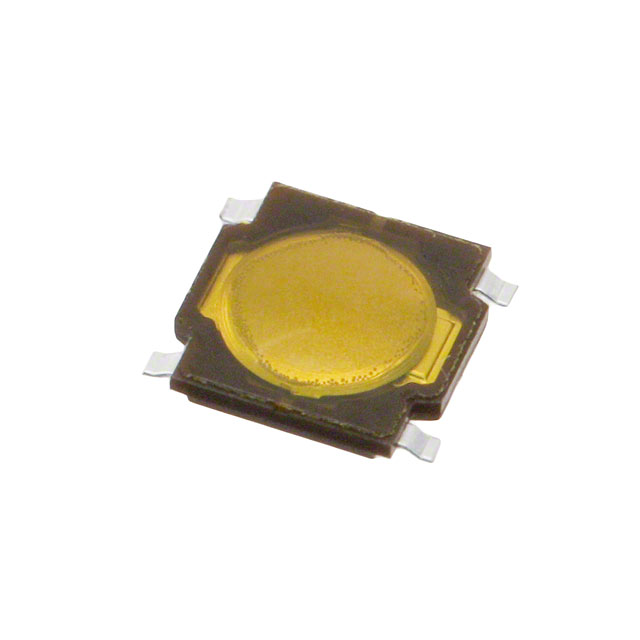

The E-Switch TL3315NF160Q is a tactile switch designed for surface mount applications. It features a round button top actuation and a force rating of 160 gf. The switch is rated for 50mA at 15VDC.
