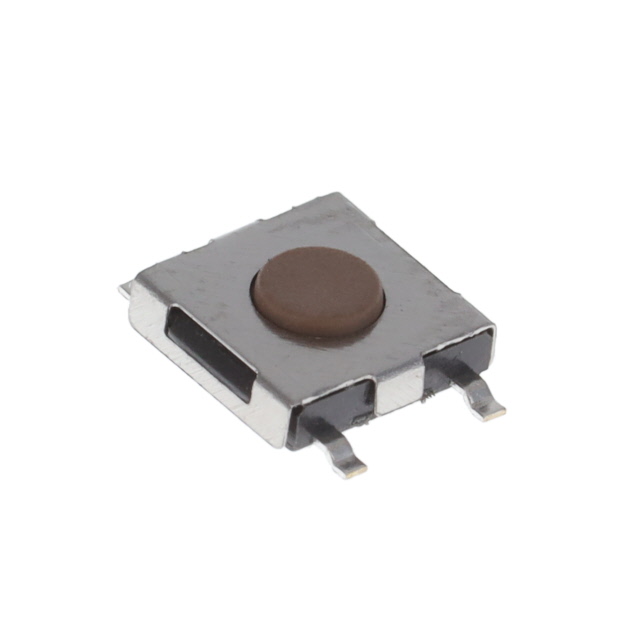

TL3313AF100QG
Or copy the link below:
- Mfr.Part #
- TL3313AF100QG
- Manufacturer
- E-Switch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 12V
- Stock
- 4,124
- In Stock ：
- 4,124
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Switch Travel :
- 0.25mm
- Mechanical Life :
- 100,000 Cycles
- Termination :
- Gull wing
- Actuator Height off PCB, Vertical :
- 1.50mm
- Circuit :
- SPST-NO
- Published :
- 2008
- Body Height :
- 1.2mm
- Body Breadth :
- 4.8 mm
- Switch Type :
- KEYPAD SWITCH
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- Mounting Type :
- Surface Mount
- ECCN Code :
- EAR99
- Voltage - Rated DC :
- 12V
- RoHS Status :
- ROHS3 Compliant
- Illumination :
- Non-Illuminated
- Actuator Type :
- Standard
- Outline :
- 4.80mm x 4.80mm
- Body Length or Diameter :
- 4.8mm
- Series :
- TL3313
- Throw Configuration :
- SPST
- Actuator Orientation :
- Top Actuated
- Operating Temperature :
- -20°C~70°C
- Contact (DC) Max Rating R Load :
- .05A@12VDC
- Termination Style :
- Gull wing
- Operating Force :
- 100gf
- Electrical Life :
- 100000 Cycle(s)
- Factory Lead Time :
- 11 Weeks
- Current Rating :
- 50mA
- Number of Switches :
- 1
- Mount :
- Surface Mount
- Contact Current(DC)-Max :
- 0.05A
- Packaging :
- Tape and Reel (TR)
- HTS Code :
- 8536.50.90.40
- Switch Function :
- Off-Mom
- Datasheets
- TL3313AF100QG
