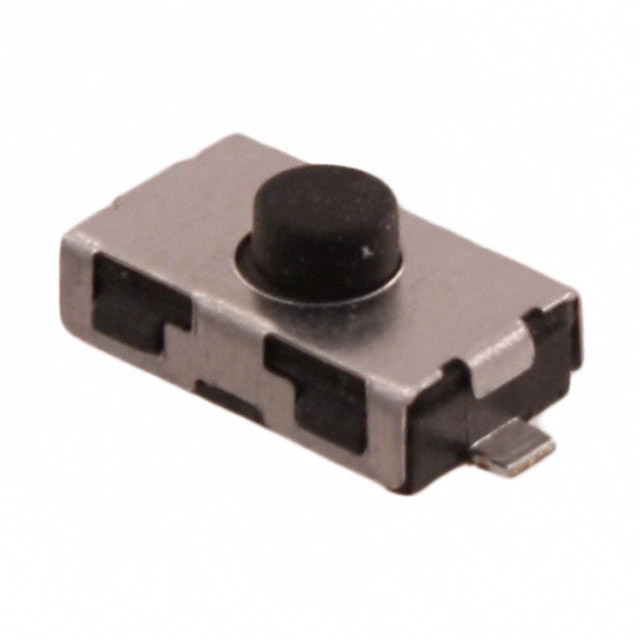

TL3310AF200QG
Or copy the link below:
- Mfr.Part #
- TL3310AF200QG
- Manufacturer
- E-Switch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NC 0.05A 50V
- Stock
- 29,733
- In Stock ：
- 29,733
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- RoHS Status :
- RoHS Compliant
- Contact Current(DC)-Max :
- 0.05A
- Terminal Material :
- Brass
- Contact Rating @ Voltage :
- 0.05A @ 50VDC
- Actuator Type :
- Standard
- Mounting Type :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Surface Mount
- Illumination :
- Non-Illuminated
- Published :
- 2007
- Actuator Height off PCB, Vertical :
- 2.50mm
- Actuator Material :
- Silicon Rubber
- Number of Switches :
- 1
- Termination Style :
- Gull wing
- Insulation Resistance :
- 1000000000Ohm
- Current Rating :
- 50mA
- Packaging :
- Tape and Reel (TR)
- Circuit :
- SPST-NC
- HTS Code :
- 8536.50.90.40
- Switch Type :
- KEYPAD SWITCH
- Series :
- TL3310
- Dielectric Withstanding Voltage :
- 250VAC V
- Operating Temperature :
- -20°C~70°C
- Actuator Orientation :
- Top Actuated
- Max Voltage Rating (DC) :
- 50V
- Contact Resistance :
- 100MOhm
- Orientation :
- Straight
- Body Breadth :
- 4 mm
- Throw Configuration :
- SPST
- Actuator Length :
- 900μm
- Switch Function :
- On-Mom
- ECCN Code :
- EAR99
- Contact (DC) Max Rating R Load :
- .05A@50VDC
- Contact Plating :
- Silver
- Termination :
- Gull wing
- Voltage - Rated DC :
- 50V
- Mechanical Life :
- 50,000 Cycles
- Operating Force :
- 200gf
- Body Length or Diameter :
- 6mm
- Electrical Life :
- 50000 cycles
- Contact Function :
- N.O.-N.C.
- Lead Free :
- Lead Free
- Switch Travel :
- 0.50mm
- Contact Material :
- Bronze, Silver
- Body Height :
- 1.6mm
- Outline :
- 6.00mm x 3.80mm
- Housing Material :
- Polyphenylene
- JESD-609 Code :
- e4
- Datasheets
- TL3310AF200QG
