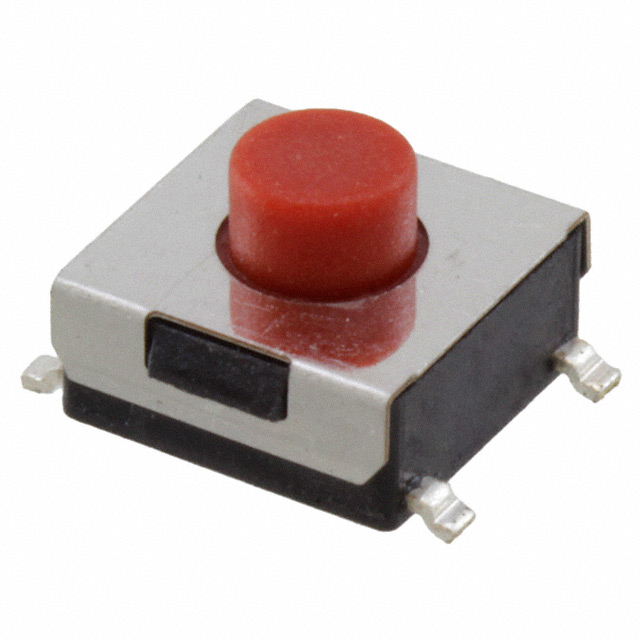

TL3303AF260QG
Or copy the link below:
- Mfr.Part #
- TL3303AF260QG
- Manufacturer
- E-Switch
- Package / Case
- SMD/SMT
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 12V
- Stock
- 47,597
- In Stock ：
- 47,597
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact (DC) Max Rating R Load :
- 0.05A@12VDC
- Operating Force :
- 260gf
- Series :
- TL3303
- Actuator Height off PCB, Vertical :
- 4.30mm
- Insulation Resistance :
- 100000000Ohm
- Factory Lead Time :
- 11 Weeks
- Circuit :
- SPST-NO
- Switch Type :
- KEYPAD SWITCH
- Contact Resistance :
- 0.05mOhm
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- Switch Function :
- Off-Mom
- Actuator Length :
- 0.067 inch
- Packaging :
- Tape and Reel (TR)
- Throw Configuration :
- SPST
- Mount :
- Surface Mount
- Outline :
- 6.20mm x 6.00mm
- Illumination :
- Non-Illuminated
- Actuator Type :
- Standard
- Actuator Orientation :
- Top Actuated
- Mounting Type :
- Surface Mount
- Dielectric Withstanding Voltage :
- 250VAC V
- Actuator Color :
- Red
- Package / Case :
- SMD/SMT
- Body Breadth :
- 6.1976 mm
- Electrical Life :
- 100000 Cycle(s)
- Contact Current(DC)-Max :
- 0.05A
- Contact Plating :
- Silver
- Body Length or Diameter :
- 6.1976mm
- Published :
- 2006
- RoHS Status :
- ROHS3 Compliant
- Actuator Material :
- Polyphenylene Sulfide (PPS)
- Body Height :
- 2.5908mm
- Operating Temperature :
- -20°C~70°C
- Termination Style :
- Gull wing
- Termination :
- Gull wing
- Switch Travel :
- 0.25mm
- Mechanical Life :
- 100,000 Cycles
- Datasheets
- TL3303AF260QG
