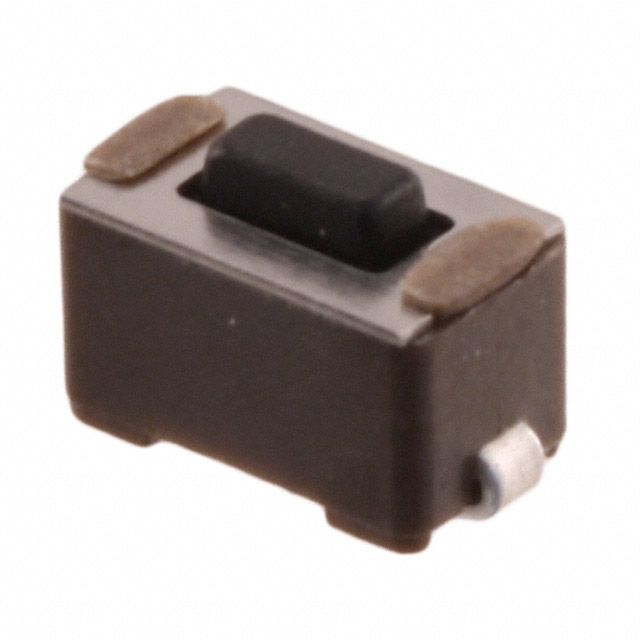

TL3302AF180QJ
Or copy the link below:
- Mfr.Part #
- TL3302AF180QJ
- Manufacturer
- E-Switch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 12V
- Stock
- 196,000
- In Stock ：
- 196,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- Dielectric Withstanding Voltage :
- 1000VRMS V
- Operating Force :
- 180gf
- Switch Type :
- PUSHBUTTON SWITCH
- Mounting Type :
- Surface Mount
- Outline :
- 6.00mm x 3.50mm
- Contact Resistance :
- 100MOhm
- Switch Travel :
- 0.25mm
- Orientation :
- Straight
- Voltage - Rated DC :
- 12V
- Operating Temperature :
- -20°C~70°C
- RoHS Status :
- ROHS3 Compliant
- Throw Configuration :
- SPST
- Packaging :
- Tape and Reel (TR)
- ECCN Code :
- EAR99
- Termination :
- Gull wing
- Circuit :
- SPST-NO
- Actuator Length :
- 800μm
- Contact Timing :
- SNAP ACTION
- Insulation Resistance :
- 100000000Ohm
- Contact Material :
- Silver
- Contact Current(DC)-Max :
- 0.05A
- Actuator Orientation :
- Top Actuated
- Max Voltage Rating (DC) :
- 12V
- Actuator Type :
- Rectangular Button
- Factory Lead Time :
- 11 Weeks
- Terminal Material :
- Brass
- Body Height :
- 3.81mm
- Actuator Height off PCB, Vertical :
- 4.30mm
- JESD-609 Code :
- e4
- Published :
- 2006
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- Contact (DC) Max Rating R Load :
- 0.05A@50VDC
- Additional Feature :
- PACKAGE REEL
- Mechanical Life :
- 40,000 Cycles
- Switch Function :
- Off-Mom
- Actuator Material :
- Polyphenylene Sulfide (PPS)
- Illumination :
- Non-Illuminated
- Termination Style :
- J Lead
- Lead Free :
- Lead Free
- Feature :
- Tactile Feedback
- Current Rating :
- 50mA
- Series :
- TL3302
- Housing Material :
- Polyphenylene
- Mount :
- Surface Mount
- Electrical Life :
- 50000 cycles
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Function :
- On-Off
- Datasheets
- TL3302AF180QJ
