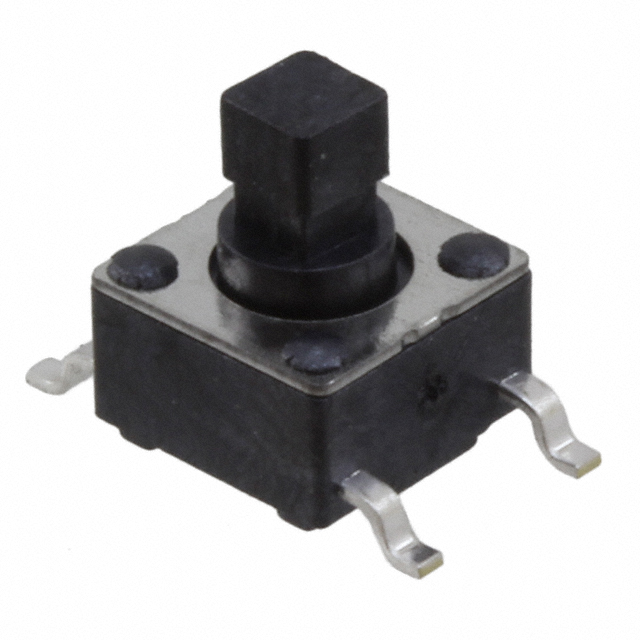

TL3301TF160QGTR

Manufacturer :

E-Switch

Product Category :

Contact Form :

SPST

ECCN :

EAR99

Minimum Operating Temperature :

- 40 C

Maximum Operating Temperature :

+ 85 C

Mechanical Life :

100,000 Cycles

Product Type :

Tactile Switches

Actuator Length, Right Angle :

-

Package :

Digi-Reel?

Contact Plating :

Gold

Termination Style :

Gull wing

Product :

Tactile Switches

Outline :

6.00mm x 6.00mm

Switch Travel :

0.25mm

Mounting Type :

Surface Mount

Switch Function :

Off-Mom

Actuator Height off PCB, Vertical :

7.50mm

Illumination Voltage (Nominal) :

-

Current Rating :

50 mA

Product Status :

Active

Actuator Type :

Plunger for Cap

Series :

TL3301

Itar Registered :

Unavailable

Illumination :

Non-Illuminated

Circuit :

SPST-NO

Actuator Material :

Polyamide (PA), Nylon

Color :

-

Lamp Type :

-

Type :

Tact Switch

Travel :

0.25 mm

Operating Temperature :

-20°C ~ 70°C

Mounting Style :

SMD/SMT

IP Rating :

-

Width :

6 mm

Illumination Color :

-

Contact Rating @ Voltage :

0.05A @ 12VDC

Length :

6 mm

Operating Force :

160gf

Features :

-

Harmonized Code :

8536.50.90.33

Base Product Number :

TL3301

Ingress Protection :

-

Actuator :

Square

Subcategory :

Switches

Illumination Type, Color :

-

Actuator Orientation :

Top Actuated
