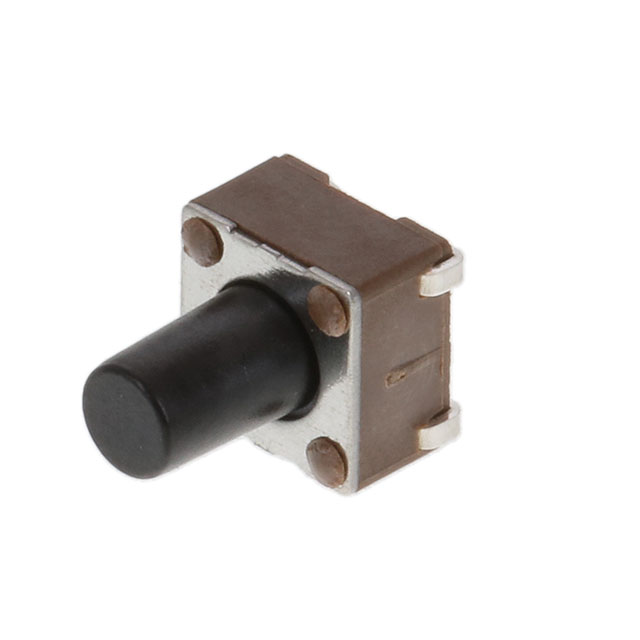

TL3301PF160QJ
Or copy the link below:
- Mfr.Part #
- TL3301PF160QJ
- Manufacturer
- E-Switch
- Package / Case
- SMD/SMT
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 12V
- Stock
- 7,210
- In Stock ：
- 7,210
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- Insulation Resistance :
- 100000000Ohm
- Factory Lead Time :
- 11 Weeks
- Series :
- TL3301
- Contact Plating :
- Silver
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Actuator Length :
- 0.193 inch
- Operating Temperature :
- -20°C~70°C
- Actuator Height off PCB, Vertical :
- 8.50mm
- Switch Type :
- KEYPAD SWITCH
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- Contact Current(DC)-Max :
- 0.05A
- Dielectric Withstanding Voltage :
- 250VAC V
- Package / Case :
- SMD/SMT
- Throw Configuration :
- SPST
- Packaging :
- Tape and Reel (TR)
- Mounting Type :
- Surface Mount
- Body Height :
- 3.9116mm
- Lead Free :
- Lead Free
- Illumination :
- Non-Illuminated
- Actuator Material :
- Polyamide (PA), Nylon
- Switch Function :
- Off-Mom
- Current Rating :
- 50mA
- Outline :
- 6.00mm x 6.00mm
- Mechanical Life :
- 100,000 Cycles
- Published :
- 2006
- Electrical Life :
- 80000 Cycle(s)
- Termination Style :
- J Lead
- Switch Travel :
- 0.25mm
- PCB Hole Count :
- 4
- RoHS Status :
- ROHS3 Compliant
- Mount :
- Surface Mount
- Operating Force :
- 160gf
- Circuit :
- SPST-NO
- Voltage - Rated DC :
- 12V
- Actuator Orientation :
- Top Actuated
- Body Breadth :
- 5.9944 mm
- Contact (DC) Max Rating R Load :
- 0.05A@12VDC
- Body Length or Diameter :
- 5.9944mm
- Actuator Type :
- Standard
- Contact Resistance :
- 0.1mOhm
- Datasheets
- TL3301PF160QJ
