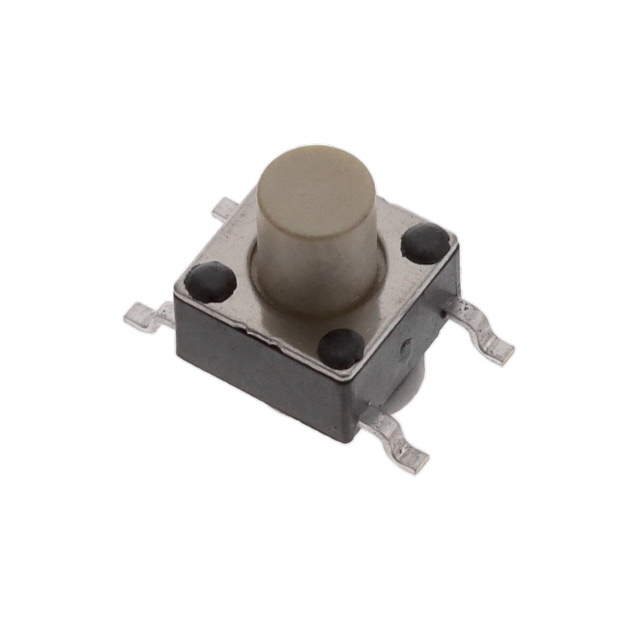

TL3301FF260QG
Or copy the link below:
- Mfr.Part #
- TL3301FF260QG
- Manufacturer
- E-Switch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 12V
- Stock
- 180,000
- In Stock ：
- 180,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- Mounting Type :
- Surface Mount
- Orientation :
- Straight
- Contact Plating :
- Silver
- Operating Temperature :
- -20°C~70°C
- Packing Method :
- Tape and Reel
- HTS Code :
- 8536.50.90.40
- Contact Current(DC)-Max :
- 0.05A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Surface Mount
- Body Length or Diameter :
- 6mm
- Actuator Material :
- Polyamide (PA), Nylon
- Contact Resistance :
- 100MOhm
- Outline :
- 6.00mm x 6.00mm
- Actuator Orientation :
- Top Actuated
- Switch Travel :
- 0.25mm
- Electrical Life :
- 100000 cycles
- Max Voltage Rating (DC) :
- 12V
- Switch Function :
- Off-Mom
- Factory Lead Time :
- 10 Weeks
- Published :
- 2006
- Number of Switches :
- 1
- Body Height :
- 3.6mm
- Actuator Length :
- 3.4mm
- Illumination :
- Non-Illuminated
- Contact Rating @ Voltage :
- 0.05A @ 12VDC
- Packaging :
- Tape and Reel (TR)
- Termination Style :
- Gull wing
- Voltage - Rated DC :
- 12V
- Contact Material :
- Bronze, Silver
- Actuator Height off PCB, Vertical :
- 7.00mm
- Mechanical Life :
- 100,000 Cycles
- Lead Free :
- Lead Free
- Contact (DC) Max Rating R Load :
- .05A@50VDC
- Body Breadth :
- 6 mm
- Termination :
- Gull wing
- ECCN Code :
- EAR99
- Throw Configuration :
- SPST
- JESD-609 Code :
- e4
- RoHS Status :
- ROHS3 Compliant
- Operating Force :
- 260gf
- Current Rating :
- 50mA
- Switch Type :
- KEYPAD SWITCH
- Circuit :
- SPST-NO
- Series :
- TL3301
- Housing Material :
- Nylon
- Actuator Type :
- Standard
- Datasheets
- TL3301FF260QG
TL3301FF260QG Documents
TL3301FF260QG datasheet pdf and Tactile Switches product details from E-Switch stock available at
