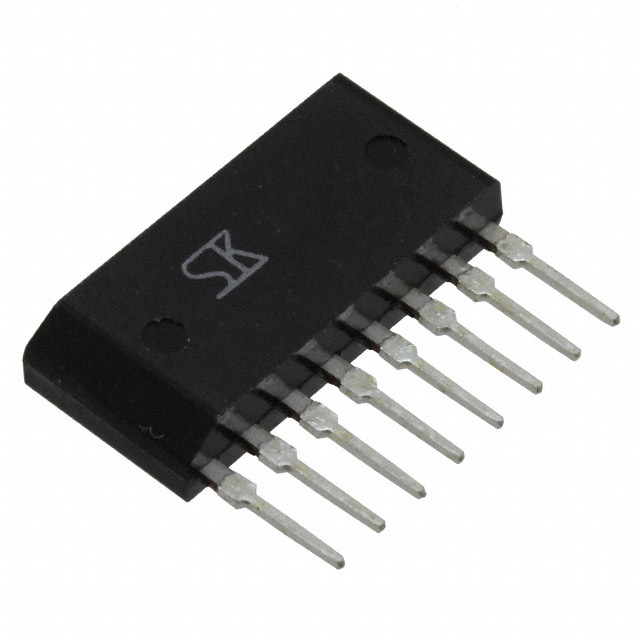

STA303A
Or copy the link below:
- Mfr.Part #
- STA303A
- Manufacturer
- Sanken Electric Co., Ltd.
- Package / Case
- 8-SIP
- Datasheet
- Download
- Description
- TRANS 3NPN DARL 100V 4A 8-SIP
- Stock
- 21,166
- In Stock ：
- 21,166
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sanken Electric Co., Ltd.
- Product Category :
- Transistors - Bipolar (BJT) - Arrays
- Factory Lead Time :
- 36 Weeks
- Base Product Number :
- STA303
- JESD-30 Code :
- R-PSIP-T8
- Number of Terminations :
- 8
- HTS Code :
- 8541.29.00.95
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 1000 @ 2A 4V
- Package :
- Bulk
- Pin Count :
- 8
- Number of Elements :
- 3
- Transistor Type :
- 3 NPN Darlington (Emitter Coupled)
- Operating Temperature :
- 150°C TJ
- Transistor Application :
- SWITCHING
- Current - Collector (Ic) (Max) :
- 4A
- Collector Emitter Voltage (VCEO) :
- 2V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Qualification Status :
- Not Qualified
- ECCN Code :
- EAR99
- Product Status :
- Active
- Terminal Position :
- Single
- Max Collector Current :
- 4A
- Collector Emitter Breakdown Voltage :
- 100V
- Max Power Dissipation :
- 3W
- Frequency - Transition :
- --
- Vce Saturation (Max) @ Ib, Ic :
- 2V @ 10mA, 2A
- Power - Max :
- 3W
- Voltage - Collector Emitter Breakdown (Max) :
- 100V
- Mounting Type :
- Through Hole
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Mount :
- Through Hole
- Configuration :
- COMPLEX
- Pbfree Code :
- yes
- RoHS Status :
- RoHS Compliant
- Transistor Element Material :
- SILICON
- Additional Feature :
- BUILT IN BIAS RESISTANCE RATIO IS 0.167
- Series :
- --
- Supplier Device Package :
- 8-SIP
- Polarity/Channel Type :
- NPN
- Package / Case :
- 8-SIP
- Lead Free :
- Lead Free
- Packaging :
- Bulk
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Current - Collector Cutoff (Max) :
- 100μA ICBO
- Published :
- 2001
- Datasheets
- STA303A
