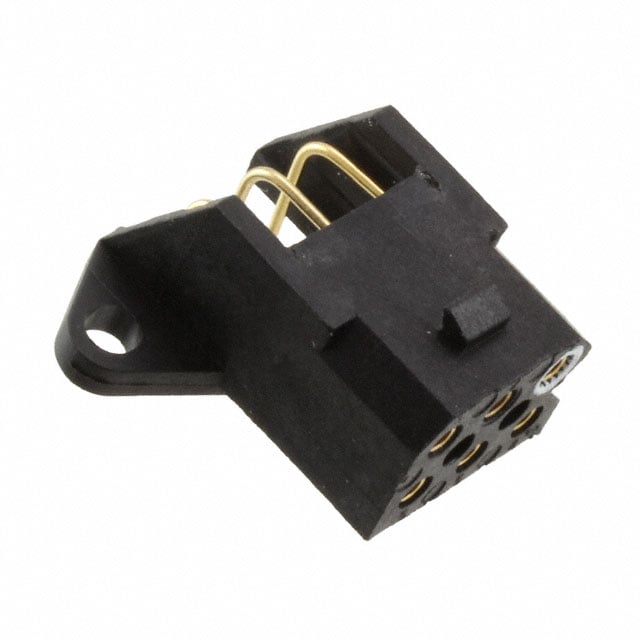

SMS6GE53
Or copy the link below:
- Mfr.Part #
- SMS6GE53
- Manufacturer
- Souriau-Sunbank by Eaton
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 6POS 0.2 PCB R/A
- Stock
- 59
- In Stock ：
- 59
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Souriau-Sunbank by Eaton
- Product Category :
- Headers, Receptacles, Female Sockets
- ECCN Code :
- EAR99
- Fastening Type :
- Locking Ramp
- Option :
- GENERAL PURPOSE
- Number of Rows :
- 2
- Termination :
- Solder
- Number of Positions :
- 6
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole, Right Angle
- Depth :
- 24.5mm
- Filter Feature :
- No
- Pitch - Mating :
- 0.200 5.08mm
- Feature :
- Mounting Flange
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Current Rating (Amps) :
- 7.5A
- Style :
- Board to Board or Cable
- Voltage - Rated :
- 220V
- JESD-609 Code :
- e4
- Housing Material :
- Thermoplastic
- Pbfree Code :
- yes
- Wire/Cable Gauge :
- 16 AWG
- RoHS Status :
- ROHS3 Compliant
- Shell Material :
- Polyamide
- Orientation :
- RIGHT ANGLE
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 14 Weeks
- Insulation Color :
- Black
- Current Rating :
- 13A
- Packaging :
- Bulk
- Connector Type :
- Receptacle
- Empty Shell :
- No
- Contact Shape :
- Circular
- Length :
- 30.2mm
- Mount :
- Through Hole
- Contact Type :
- Female Socket
- Row Spacing - Mating :
- 0.200 (5.08mm)
- Mixed Contacts :
- No
- Max Voltage Rating (AC) :
- 2kV
- Insulation Material :
- Thermoplastic, Glass Filled
- Contact Length - Post :
- 0.177 4.50mm
- Operating Temperature :
- -55°C~105°C
- Material Flammability Rating :
- UL94 V-0
- Ingress Protection :
- IP40
- Contact Gender :
- FEMALE
- IEC Conformance :
- No
- Insulation Resistance :
- 5GOhm
- DIN Conformance :
- No
- Contact Material :
- COPPER ALLOY
- Contact Plating :
- Gold
- Series :
- SMS
- MIL Conformance :
- No
- Datasheets
- SMS6GE53
2 Rows Receptacle Solder Copper Alloy Through Hole, Right Angle Bulk Thermoplastic, Glass Filled 6 Positions Female Socket
SMS6GE53 Overview
Packaging is in the form of Receptacle.This device has a Through Hole, Right Angle mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the SMS Series.Several benefits come from the Mounting Flange feature.There is a mounting hole at Through Hole.Devices operate at -55°C~105°C operating temperatures.
SMS6GE53 Features
SMS series
SMS6GE53 Applications
There are a lot of SOURIAU-SUNBANK
SMS6GE53 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
