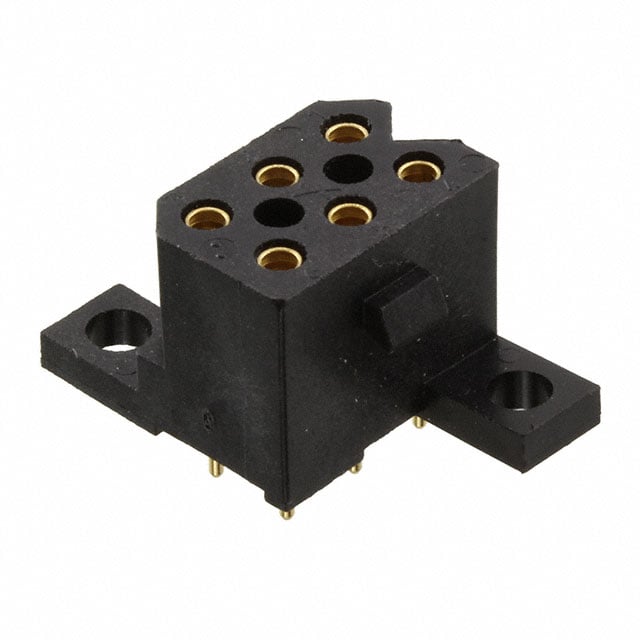

SMS6GE3

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Headers, Receptacles, Female Sockets

Material Flammability Rating :

UL94 V-0

Contact Finish - Mating :

Gold

Reliability :

COMMERCIAL

PCB Contact Pattern :

RECTANGULAR

Contact Shape :

Circular

PCB Contact Row Spacing :

5.08 mm

Number Of PCB Rows :

2

Pitch - Mating :

0.200 5.08mm

Contact Finish Thickness - Mating :

16.0μin 0.41μm

Series :

SMS

Contact Gender :

FEMALE

Current Rating :

5A

Reference Standard :

UL

RoHS Status :

ROHS3 Compliant

Flammability Rating :

UL94 V-0

Terminal Pitch :

5.08mm

Mixed Contacts :

No

Contact Material :

COPPER ALLOY

Moisture Sensitivity Level (MSL) :

Not Applicable

Number of Conductors :

ONE

Durability :

500 Cycles

Termination :

Solder

Number of Rows :

2

Ingress Protection :

IP40

Factory Lead Time :

14 Weeks

Voltage - Rated :

2kV

Number of Positions Loaded :

All

Insulation Color :

Black

Insulation Height :

0.528 13.40mm

ECCN Code :

EAR99

Operating Temperature :

-55°C~105°C

Insulation Resistance :

5GOhm

Insulation Material :

Thermoplastic, Glass Filled

UL Flammability Code :

94V-0

Length :

24.9mm

Feature :

Mounting Flange

Housing Material :

Thermoplastic

Depth :

16.2mm

Option :

GENERAL PURPOSE

Shell Material :

GLASS FILLED THERMOPLAST

Fastening Type :

Locking Ramp

Empty Shell :

No

Row Spacing - Mating :

0.200 (5.08mm)

MIL Conformance :

No

Style :

Board to Board or Cable

Max Current Rating :

7.5A

Orientation :

Straight

Contact Type :

Female Socket

Number of Positions :

6

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

REACH SVHC :

No SVHC

Mounting Type :

Through Hole

Mount :

Through Hole

Polarization Key :

POLARIZED HOUSING

IEC Conformance :

No

Packaging :

Bulk

DIN Conformance :

No

Contact Length - Post :

0.134 3.40mm

Filter Feature :

No

Connector Type :

Receptacle
