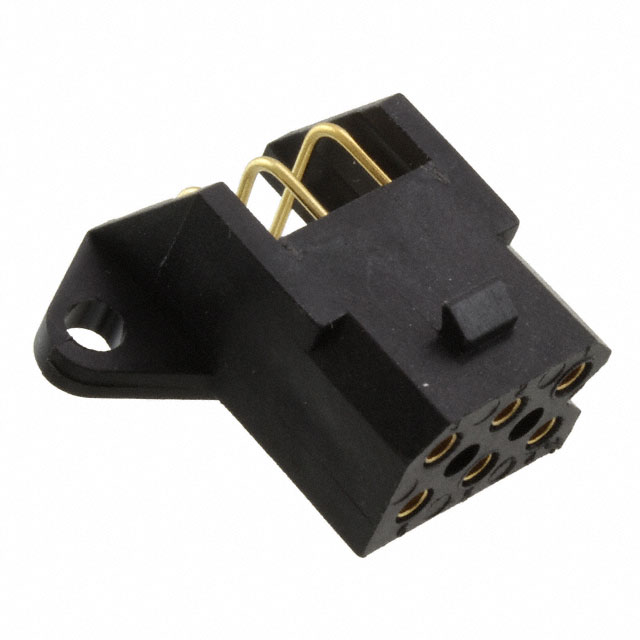

SMS6GE5
Or copy the link below:
- Mfr.Part #
- SMS6GE5
- Manufacturer
- Souriau-Sunbank by Eaton
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 6POS 0.2 GOLD PCB R/A
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Souriau-Sunbank by Eaton
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Finish - Mating :
- Gold
- Termination :
- Solder
- Fastening Type :
- Locking Ramp
- Contact Material :
- COPPER ALLOY
- Packaging :
- Bulk
- MIL Conformance :
- No
- Polarization Key :
- POLARIZED HOUSING
- Series :
- SMS
- Reference Standard :
- UL
- Row Spacing - Mating :
- 0.200 (5.08mm)
- Current Rating :
- 5A
- PCB Contact Row Spacing :
- 5.08 mm
- DIN Conformance :
- No
- Mounting Type :
- Through Hole, Right Angle
- REACH SVHC :
- No SVHC
- Additional Feature :
- ROHS COMPLIANT, ELV COMPLIANT
- Max Current Rating :
- 7.5A
- Depth :
- 24.5mm
- Terminal Pitch :
- 5.08mm
- Shell Material :
- GLASS FILLED THERMOPLAST
- Contact Finish Thickness - Mating :
- 16.0μin 0.41μm
- IEC Conformance :
- No
- Durability :
- 500 Cycles
- Style :
- Board to Board or Cable
- Option :
- GENERAL PURPOSE
- Operating Temperature :
- -55°C~105°C
- Mount :
- Through Hole
- Insulation Color :
- Black
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated :
- 2kV
- Number of Conductors :
- ONE
- Length :
- 30.2mm
- Number Of PCB Rows :
- 3
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions Loaded :
- All
- Insulation Resistance :
- 5GOhm
- Empty Shell :
- No
- Insulation Material :
- Thermoplastic, Glass Filled
- Reliability :
- COMMERCIAL
- Orientation :
- RIGHT ANGLE
- Contact Length - Post :
- 0.177 4.50mm
- Number of Rows :
- 2
- Factory Lead Time :
- 14 Weeks
- Number of Positions :
- 6
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- JESD-609 Code :
- e4
- Contact Shape :
- Circular
- Contact Type :
- Female Socket
- Housing Material :
- Thermoplastic
- Pitch - Mating :
- 0.200 5.08mm
- Material Flammability Rating :
- UL94 V-0
- Mixed Contacts :
- No
- Filter Feature :
- No
- Flammability Rating :
- UL94 V-0
- Connector Type :
- Receptacle
- PCB Contact Pattern :
- RECTANGULAR
- Feature :
- Mounting Flange
- Ingress Protection :
- IP40
- UL Flammability Code :
- 94V-0
- Contact Gender :
- FEMALE
- Datasheets
- SMS6GE5
2 Rows Receptacle Solder Copper Alloy Through Hole, Right Angle Bulk Gold Thermoplastic, Glass Filled 6 Positions Female Socket
SMS6GE5 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole, Right Angle.A Bulk case is used to package the product.A product of the SMS Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as ROHS COMPLIANT, ELV COMPLIANT, to name a few.A number of features make the Mounting Flange feature more powerful.Through Hole represents the mounting point for the part.-55°C~105°C Operating Temperature is the default operating temperature for the device.
SMS6GE5 Features
SMS series
SMS6GE5 Applications
There are a lot of SOURIAU-SUNBANK
SMS6GE5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
