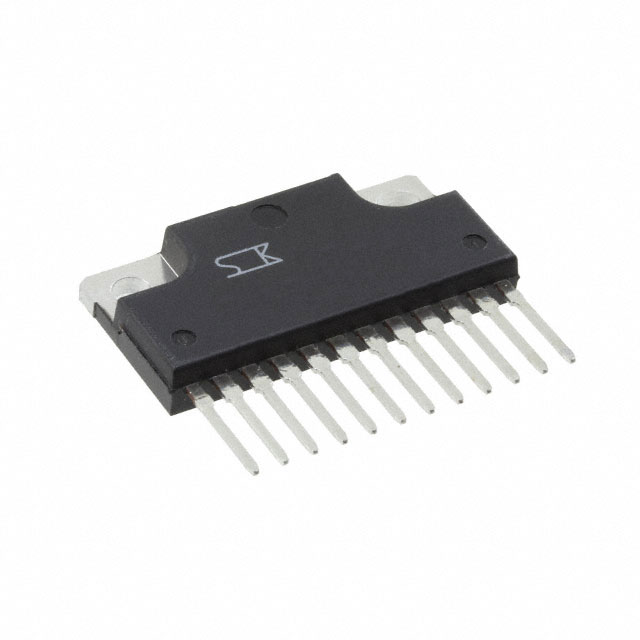

SLA6022

Manufacturer :

Sanken Electric Co., Ltd.

Product Category :

Transistors - Bipolar (BJT) - Arrays

Terminal Position :

Single

HTS Code :

8541.29.00.95

JESD-30 Code :

R-PSIP-T12

Frequency - Transition :

--

Published :

2001

Polarity/Channel Type :

NPN AND PNP

Collector Emitter Breakdown Voltage :

100V

Number of Elements :

6

Factory Lead Time :

12 Weeks

DC Current Gain (hFE) (Min) @ Ic, Vce :

2000 @ 3A 4V

Number of Terminations :

12

Product Status :

Obsolete

Current - Collector (Ic) (Max) :

5A

Voltage - Collector Emitter Breakdown (Max) :

80V 100V

Supplier Device Package :

12-SIP w/fin

Pin Count :

12

Transistor Application :

SWITCHING

Reach Compliance Code :

Unknown

ECCN Code :

EAR99

Collector Emitter Voltage (VCEO) :

1.5V

Package / Case :

12-SIP

Power - Max :

5W

Mounting Type :

Through Hole

Base Product Number :

SLA60

Max Collector Current :

5A

Qualification Status :

Not Qualified

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Transistor Type :

3 NPN, 3 PNP Darlington (3-Phase Bridge)

Pbfree Code :

yes

Transistor Element Material :

SILICON

Max Power Dissipation :

5W

Configuration :

COMPLEX

Vce Saturation (Max) @ Ib, Ic :

1.5V @ 6mA, 3A

Current - Collector Cutoff (Max) :

10μA ICBO

RoHS Status :

RoHS Compliant

Series :

--

Operating Temperature :

150°C TJ

Packaging :

Tube

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Mount :

Surface Mount

Package :

Tube
