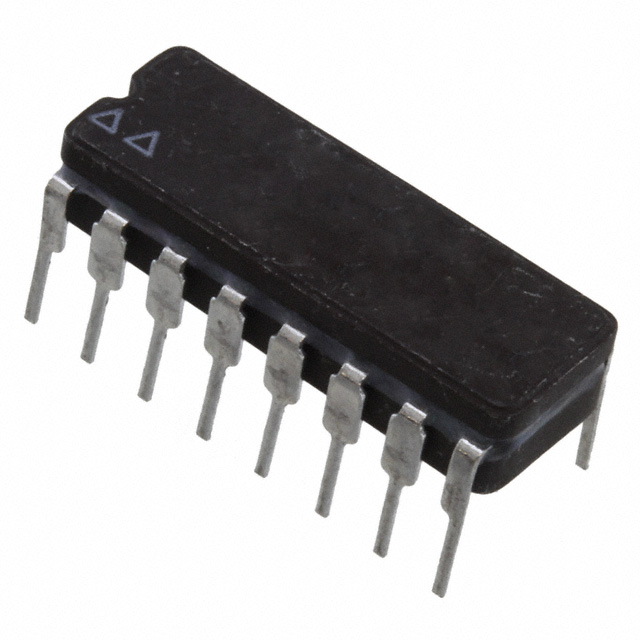

SG2003J

Manufacturer :

Microchip Technology

Product Category :

Transistors - Bipolar (BJT) - Arrays

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Radiation Hardening :

No

Base Product Number :

SG2003

Package :

Tube

Mounting Style :

Through Hole

ECCN Code :

EAR99

Minimum Operating Temperature :

- 55 C

Output Type :

Open Collector

Polarity :

NPN

Frequency - Transition :

-

Number of Elements :

7

Current - Collector Cutoff (Max) :

-

Collector Emitter Breakdown Voltage :

50V

Transistor Type :

7 NPN Darlington

Min Operating Temperature :

-55 °C

Product Type :

Darlington Transistors

Vce Saturation (Max) @ Ib, Ic :

1.6V @ 500μA, 350mA

Supplier Device Package :

16-CDIP

Additional Feature :

CMOS COMPATIBLE

Max Breakdown Voltage :

50V

Output Current :

100A

Product Status :

Active

Configuration :

COMPLEX

Transistor Polarity :

NPN

Mounting Type :

Through Hole

Max Operating Temperature :

125 °C

Transistor Element Material :

SILICON

Terminal Finish :

Tin/Lead (Sn/Pb)

Voltage - Collector Emitter Breakdown (Max) :

50V

RoHS Status :

RoHS Compliant

DC Current Gain (hFE) (Min) @ Ic, Vce :

1000 @ 350mA 2V

Lifecycle Status :

IN PRODUCTION (Last Updated: 2 weeks ago)

RoHS :

Details

Power - Max :

-

Packaging :

Tube

Product Category :

Darlington Transistors

Package / Case :

16-CDIP (0.300, 7.62mm)

Max Collector Current :

500mA

Collector Emitter Voltage (VCEO) :

50V

Output Voltage :

95V

Published :

1997

Manufacturer :

Microchip

Number of Pins :

16

Collector Emitter Saturation Voltage :

1.6V

Maximum Operating Temperature :

+ 125 C

Lead Free :

Contains Lead

Subcategory :

Transistors

Current - Collector (Ic) (Max) :

500mA

Series :

-

Terminal Position :

Dual

Operating Temperature :

150°C TJ

JESD-609 Code :

e0

Mount :

Through Hole

Number of Terminations :

16

Factory Lead Time :

20 Weeks

Transistor Application :

AMPLIFIER

Pbfree Code :

No

Brand :

Microchip Technology
