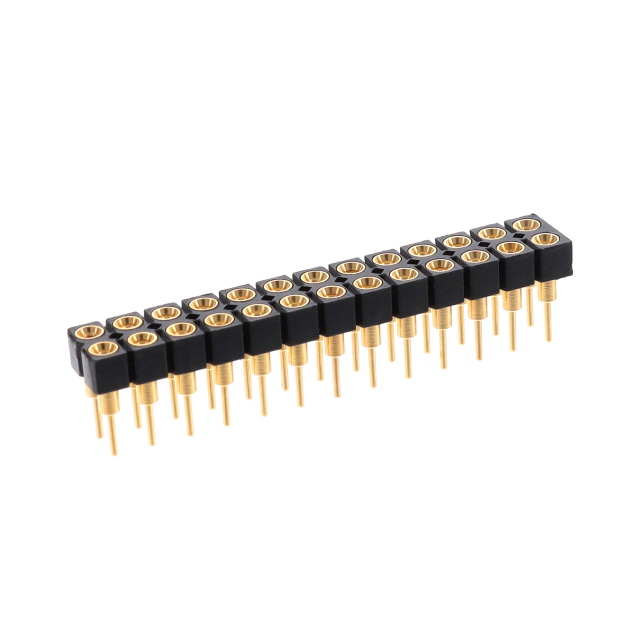

SD-113-G-2
Or copy the link below:
- Mfr.Part #
- SD-113-G-2
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN SKT .100" 26POS
- Stock
- 131
- In Stock ：
- 131
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Receptacles, Female Sockets
- Orientation :
- Straight
- JESD-609 Code :
- e4
- Connector Type :
- BOARD CONNECTOR
- Number of Rows :
- 2
- Termination :
- Solder
- Pitch :
- 2.54mm
- Mixed Contacts :
- No
- Housing Color :
- Black
- Factory Lead Time :
- 2 Weeks
- Housing Material :
- Polyester
- Pbfree Code :
- yes
- DIN Conformance :
- No
- MIL Conformance :
- No
- IEC Conformance :
- No
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- HTS Code :
- 8536.69.40.40
- ECCN Code :
- EAR99
- Option :
- GENERAL PURPOSE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Plating :
- Gold
- Length :
- 33.02mm
- Body/Shell Style :
- Socket
- Mounting Type :
- BOARD
- Number of Contacts :
- 26
- Contact Material :
- Copper
- Filter Feature :
- No
- Max Operating Temperature :
- 125°C
- Contact Resistance :
- 10MOhm
- RoHS Status :
- ROHS3 Compliant
- Min Operating Temperature :
- -55°C
- Packaging :
- Bulk
- Max Current Rating :
- 1A
- Depth :
- 5.08mm
- Gender :
- FEMALE
- Datasheets
- SD-113-G-2
2 Rows BOARD CONNECTOR Solder Copper BOARD Bulk
SD-113-G-2 Overview
The product is packaged in BOARD CONNECTOR.This device is mounted in the BOARD position.It has been determined that a Bulk case is necessary to package the product.When the temperature is below 125°C, it is best to use it.A minimum operating temperature of -55°C is required for this device.
SD-113-G-2 Features
SD-113-G-2 Applications
There are a lot of Samtec Inc.
SD-113-G-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
