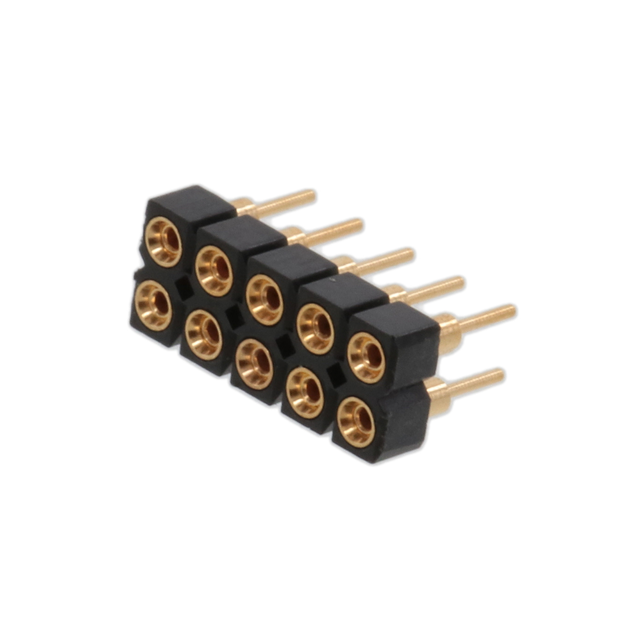

SD-105-G-2
Or copy the link below:
- Mfr.Part #
- SD-105-G-2
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 10POS 0.1 GOLD PCB
- Stock
- 22
- In Stock ：
- 22
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Receptacles, Female Sockets
- MIL Conformance :
- No
- Number of Positions Loaded :
- All
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Published :
- 2014
- JESD-609 Code :
- e4
- Depth :
- 5.08mm
- Orientation :
- Straight
- Contact Type :
- Female Socket
- Length :
- 12.7mm
- Insulation Height :
- 0.350 8.89mm
- RoHS Status :
- ROHS3 Compliant
- Contact Finish - Mating :
- Gold
- Factory Lead Time :
- 3 Weeks
- Mixed Contacts :
- No
- Option :
- GENERAL PURPOSE
- Packaging :
- Tube
- Max Current Rating :
- 1A
- Mounting Type :
- Through Hole
- IEC Conformance :
- No
- Connector Type :
- Receptacle
- Termination :
- Solder
- Radiation Hardening :
- No
- Fastening Type :
- Push-Pull
- ECCN Code :
- EAR99
- DIN Conformance :
- No
- Contact Finish Thickness - Post :
- 10.0μin 0.25μm
- Gender :
- FEMALE
- Series :
- SD
- Pitch - Mating :
- 0.100 2.54mm
- Pbfree Code :
- yes
- Contact Material :
- BERYLLIUM COPPER
- Number of Rows :
- 2
- Style :
- Board to Board
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Filter Feature :
- No
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Number of Positions :
- 10
- Operating Temperature :
- -55°C~125°C
- Contact Shape :
- Circular
- Contact Length - Post :
- 0.125 3.18mm
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Insulation Color :
- Black
- Contact Resistance :
- 10MOhm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Polyester
- HTS Code :
- 8536.69.40.40
- Datasheets
- SD-105-G-2
2 Rows Receptacle Solder Beryllium Copper Through Hole Tube Gold Liquid Crystal Polymer (LCP) 10 Positions Female Socket
SD-105-G-2 Overview
A Receptacle package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tube case.It is part of the SD Series of products.There is no operating temperature for the device.
SD-105-G-2 Features
SD series
SD-105-G-2 Applications
There are a lot of Samtec Inc.
SD-105-G-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
