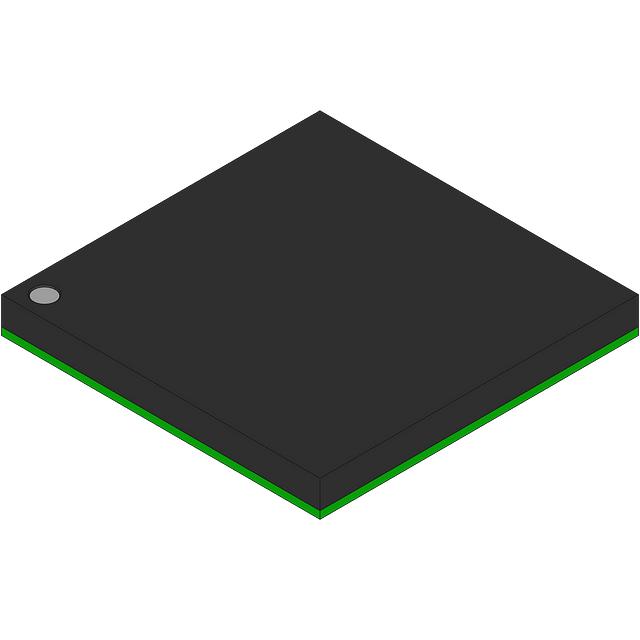

SCF5249VM140

Manufacturer :

NXP Semiconductors

Product Category :

Memory

Oscillator Type :

External

Core Processor :

Coldfire V2

Series :

MCF524x

Number of I/O :

47

Boundary Scan :

yes

Width :

15mm

Terminal Form :

Ball

Terminal Position :

BOTTOM

Bit Size :

32

Peripherals :

DMA, I2S, POR, Serial Audio, WDT

External Data Bus Width :

16

RoHS Status :

ROHS3 Compliant

Address Bus Width :

24

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Length :

15mm

Qualification Status :

Not Qualified

RAM Size :

96K x 8

Operating Temperature :

0°C~70°C TA

Factory Lead Time :

10 Weeks

Core Size :

32-Bit

Voltage - Supply (Vcc/Vdd) :

3V~3.6V

Clock Frequency :

33.86MHz

Published :

2001

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Mounting Type :

Surface Mount

Speed :

140MHz

Program Memory Type :

ROMless

Terminal Pitch :

1mm

Connectivity :

I2C, IDE, Memory Card, SPI, UART/USART

Format :

FIXED POINT

Low Power Mode :

yes

Supply Voltage :

1.8V

Package / Case :

160-BGA

Integrated Cache :

yes

Peak Reflow Temperature (Cel) :

260

ECCN Code :

3A991.A.2

Number of Terminations :

160

Packaging :

Bulk

JESD-30 Code :

S-PBGA-B160

Height Seated (Max) :

1.75mm

HTS Code :

8542.31.00.01

uPs/uCs/Peripheral ICs Type :

MICROPROCESSOR, RISC

Data Converter :

A/D 4x12b

JESD-609 Code :

e1

Time@Peak Reflow Temperature-Max (s) :

40

Surface Mount :

yes
