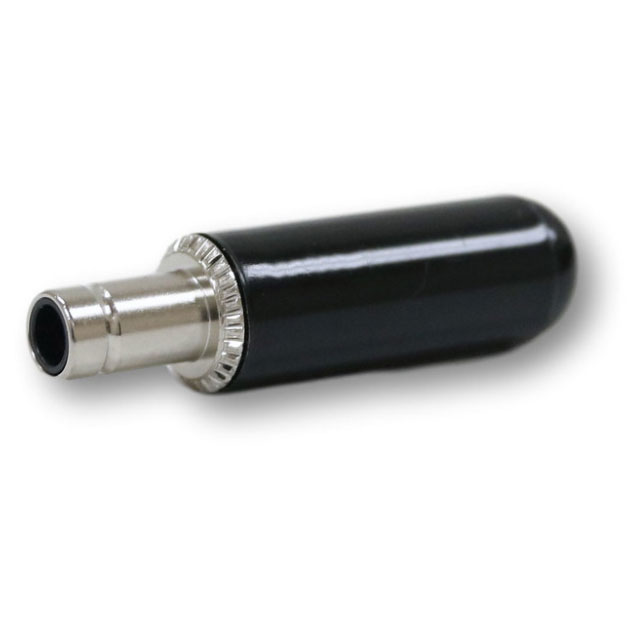

S760Z

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Itar Registered :

Unavailable

Number of Ports :

1(Port)

Thread Size :

-

Package :

Bulk

Number of Terminals :

2

Product Height (mm) :

Not Required(mm)

Mating Length/Depth :

0.374 (9.50mm)

Pin Diameter :

-

Product :

Plugs

Termination :

Solder Eyelet(s)

Product Status :

Active

Mounting Style :

CABLE

ECCN :

EAR99

Termination Method :

Solder

Outside Contact Diameter :

5.5 mm

Body Material :

COPPER ALLOY

Product Depth (mm) :

Not Required(mm)

Termination Style :

Solder

Voltage - Rated :

24VDC

Mounting Angle :

Straight

Insulation Color :

White

Body Color :

Silver, Black

Current Rating (Amps) :

5 A

Body Orientation :

Straight

Connector Type :

PLUG

Shielding :

Unshielded

Voltage Rating Max :

24VDC

Operating Temperature :

-

IP Rating :

-

Industry Recognized Mating Diameter :

2.00mm ID (0.079), 5.50mm OD (0.217)

Includes :

-

Housing Material :

Thermoplastic (TP)

Mounting Feature :

-

Gender :

PL

Features :

Cable Clamp

Material Flammability Rating :

-

Ingress Protection :

-

Inside Contact Diameter :

2 mm

Internal Switch(s) :

Does Not Contain Switch

Type :

DC Power

Current Rating :

5 A

Contact Plating :

Nickel

Mounting Type :

Free Hanging (In-Line)

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Product Length (mm) :

36.1(mm)

Packaging :

Bulk

Current Rating (Max) :

5(A)

Voltage Rating :

24 VDC

Contact Material - Plating :

Tin

RoHS :

Details

Contact Material :

COPPER ALLOY

Product Diameter (mm) :

9.5(mm)

Series :

-

Actual Diameter :

0.079 (2.00mm ID), 0.217 (5.50mm OD)

Number of Contacts :

2(POS)
