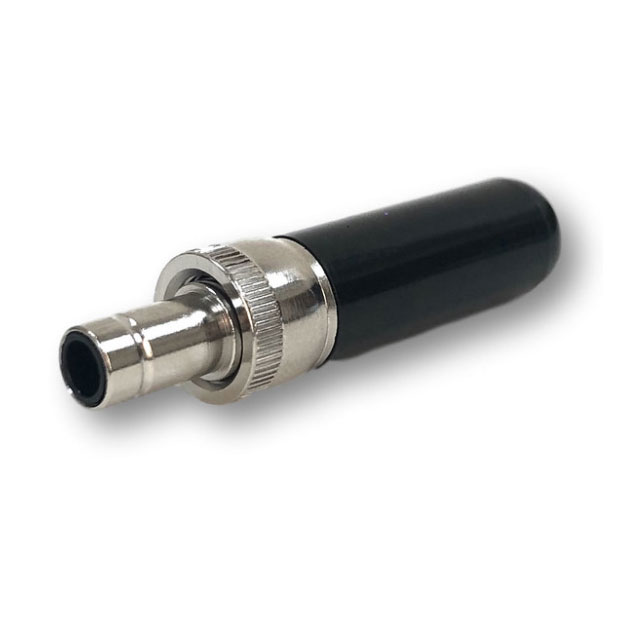

S760KZ

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Body Color :

Silver, Black

Contact Plating :

Nickel

Product Length (mm) :

43.2(mm)

Type :

DC Power

Shielding :

Unshielded

Industry Recognized Mating Diameter :

2.00mm ID (0.079), 5.50mm OD (0.217)

Material Flammability Rating :

-

Number of Contacts :

2(POS)

Termination Method :

Solder

Current Rating (Amps) :

5 A

Pin Diameter :

-

Itar Registered :

Unavailable

RoHS :

Details

Mounting Feature :

-

Contact Material - Plating :

Tin

Series :

-

Mating Length/Depth :

0.374 (9.50mm)

Inside Contact Diameter :

2 mm

Outside Contact Diameter :

5.5 mm

Features :

Cable Clamp, Thread Lock

Voltage - Rated :

24VDC

Mounting Style :

CABLE

Product :

Plugs

Current Rating :

5 A

Actual Diameter :

0.079 (2.00mm ID), 0.217 (5.50mm OD)

Mounting Type :

Free Hanging (In-Line)

Body Orientation :

Straight

Internal Switch(s) :

Does Not Contain Switch

Product Height (mm) :

Not Required(mm)

Connector Type :

PLUG

Thread Size :

-

Body Material :

Brass

Product Diameter (mm) :

9.5(mm)

Mounting Angle :

Straight

Number of Positions/Contacts :

2 Conductors, 2 Contacts

IP Rating :

-

Housing Material :

Thermoplastic (TP)

Packaging :

Bulk

Product Depth (mm) :

Not Required(mm)

Package :

Bulk

Contact Material :

COPPER ALLOY

Includes :

-

Ingress Protection :

-

Product Status :

Active

Voltage Rating Max :

24VDC

Gender :

PL

Number of Terminals :

2

Voltage Rating :

24 VDC

Termination Style :

Solder

ECCN :

EAR99

Operating Temperature :

-

Number of Ports :

1(Port)

Termination :

Solder Eyelet(s)

Insulation Color :

White

Current Rating (Max) :

5(A)
