S760KHZ

Share

Or copy the link below:

Mfr.Part #
S760KHZ
Manufacturer
Switchcraft / Conxall
Package / Case
Datasheet
Download
Description
DC POWER PLUG, Z SERIES, 2.0MM X
Stock
29
In Stock :
29

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Switchcraft / Conxall
Product Category :
Power Connectors
Packaging :
Bulk
Outside Contact Diameter :
5.5 mm
Product Status :
Active
Itar Registered :
Unavailable
Gender :
FEMALE
Industry Recognized Mating Diameter :
2.00mm ID (0.079), 5.50mm OD (0.217)
Number of Positions/Contacts :
2 Conductors, 2 Contacts
Product :
Plugs
ECCN :
EAR99
Material Flammability Rating :
-
Inside Contact Diameter :
2 mm
Features :
Cable Clamp, Thread Lock
Contact Material :
COPPER ALLOY
RoHS :
Details
Termination Style :
Solder
Series :
-
Body Color :
Silver, Black
Contact Plating :
Nickel
Shielding :
Unshielded
Mating Length/Depth :
0.374 (9.50mm)
Connector Type :
PLUG
IP Rating :
-
Maximum Operating Temperature :
+ 105 C
Mounting Angle :
Straight
Voltage Rating :
24 VDC
Mounting Style :
CABLE
Thread Size :
-
Voltage - Rated :
24VDC
Termination :
Solder Eyelet(s)
Current Rating (Amps) :
7.5 A
Housing Material :
Thermoplastic (TP)
Actual Diameter :
0.079 (2.00mm ID), 0.217 (5.50mm OD)
Ingress Protection :
-
Mounting Feature :
-
Package :
Bulk
Includes :
-
Internal Switch(s) :
Does Not Contain Switch
Contact Material - Plating :
Tin
Mounting Type :
Free Hanging (In-Line)
Body Material :
Brass
Insulation Color :
Black
Current Rating :
7.5 A
Operating Temperature :
-
Introducing Power Connectors Switchcraft / Conxall S760KHZ from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), Operating Temperature:-, S760KHZ pinout, S760KHZ datasheet PDF, S760KHZ amp .Beyond Power Connectors Switchcraft / Conxall S760KHZ ,we also offer KLDHCX-0202-BC-1, EP501A, EP501B, Our vast inventory has you covered. Contact us now for immediate solutions.

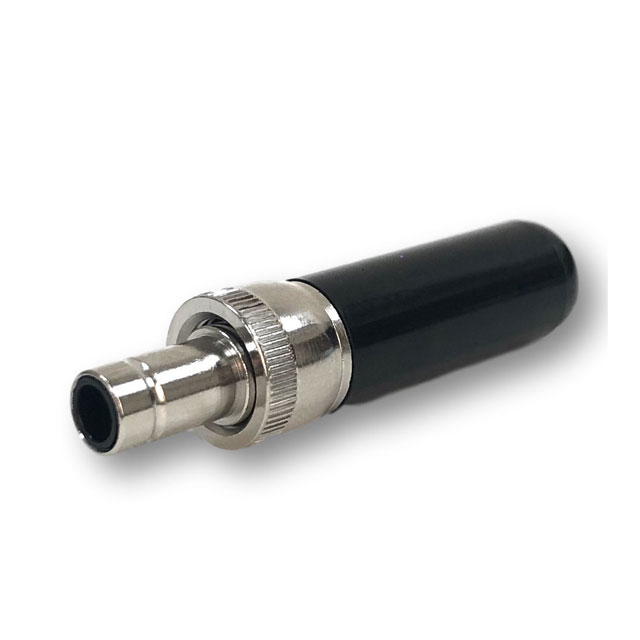

Switchcraft / Conxall S760KHZ
