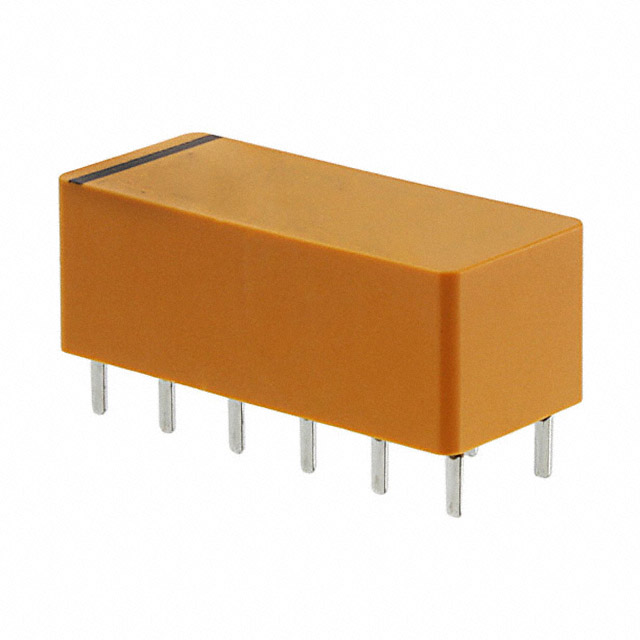

S4EB-L2-24V
Or copy the link below:
- Mfr.Part #
- S4EB-L2-24V
- Manufacturer
- Panasonic
- Package / Case
- DIP
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE 4PST 4A 24V
- Stock
- 635
- In Stock ：
- 635
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Panasonic
- Product Category :
- Power Relays, Over 2 Amps
- Coil Current :
- 8.4mA
- HTS Code :
- 8536.41.00.20
- Contact Material :
- Silver Alloy, Cadmium Free
- Switching Voltage :
- 250VAC 48VDC -Max
- Body Height :
- 10mm
- Packing Method :
- Box
- Number of Pins :
- 12
- Coil Voltage :
- 24VDC
- Body Length or Diameter :
- 28mm
- Throw Configuration :
- 4PST
- Coil Resistance :
- 2.85kOhm
- Power Consumption :
- 202mW
- Coil Type :
- Latching, Dual Coil
- Termination Style :
- PC Pin
- Contact Rating (Current) :
- 4A
- Relay Type :
- GENERAL PURPOSE
- Operate Time :
- 15ms
- Operating Temperature :
- -55°C~65°C
- Package / Case :
- DIP
- Must Operate Voltage :
- 16.8VDC
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Series :
- S
- Max Voltage Rating (DC) :
- 48V
- Lead Free :
- Lead Free
- Coil Voltage (DC) :
- 24V
- Power Rating :
- 202mW
- Relay Action :
- LATCHED
- Contact (DC) Max Rating R Load :
- 3A@48VDC
- Coil Power :
- 202mW
- Contact/Output Supply Type :
- AC/DC
- Weight :
- 8G
- Mount :
- Through Hole
- ECCN Code :
- EAR99
- Published :
- 2003
- Contact Form :
- 4PST-NO (4 Form A)
- Coil/Input Supply Type :
- DC
- Termination :
- PC Pin
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 10 Weeks
- Max Voltage Rating (AC) :
- 250V
- Seal Rating :
- Sealed - Fully
- Packaging :
- Tube
- RoHS Status :
- RoHS Compliant
- Datasheets
- S4EB-L2-24V
S4EB-L2-24V datasheet pdf and Power Relays, Over 2 Amps product details from Panasonic Electric Works stock available at
