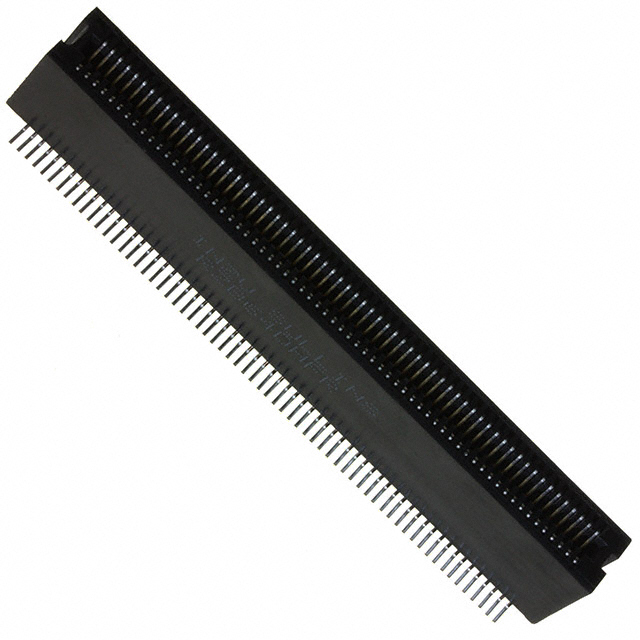

RZB64DHFR
Or copy the link below:
- Mfr.Part #
- RZB64DHFR
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 128POS 0.050
- Stock
- 31,919
- In Stock ：
- 31,919
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Termination :
- Solder
- Card Thickness :
- 0.062 1.57mm
- Packaging :
- Tray
- Lead Free :
- Contains Lead
- Plating Thickness :
- 10μin
- Card Type :
- Non Specified - Dual Edge
- Feature :
- Board Lock
- Connector Type :
- Hairpin Bellows
- Housing Material :
- Plastic
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Mount :
- Surface Mount
- PCB Contact Pattern :
- RECTANGULAR
- Width :
- 9.4mm
- Published :
- 2003
- Reliability :
- COMMERCIAL
- Height :
- 15.5mm
- Operating Temperature :
- -65°C~125°C
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- RoHS Status :
- Non-RoHS Compliant
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Number of Positions/Bay/Row :
- 64
- Contact Finish :
- Gold
- Number of Positions :
- 128
- Body Depth :
- 0.61 inch
- Rated Current (Signal) :
- 1A
- Contact Type :
- Hairpin Bellows
- Contact Material :
- Phosphor Bronze
- Color :
- Black
- Number of Rows :
- 2
- Length :
- 103mm
- Total Number of Contacts :
- 128
- Number Of PCB Rows :
- 2
- Gender :
- FEMALE
- Mounting Type :
- Surface Mount
- Number of Conductors :
- ONE
- Flammability Rating :
- UL94 V-0
- Pitch :
- 0.050 1.27mm
- Read Out :
- Dual
- Body Breadth :
- 0.37 inch
- Datasheets
- RZB64DHFR
Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder Gold 128 Positions Polyphenylene Sulfide (PPS)
RZB64DHFR Overview
Material was packaged in accordance with Tray's specifications.It's recommended to mount type Surface Mount.The device is connected via the connector socket Hairpin Bellows.This device is equipped with Board Lock features.
RZB64DHFR Features
RZB64DHFR Applications
There are a lot of Sullins Connector Solutions
RZB64DHFR Edgeboard Connectors applications.
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
