Mfr.Part #
RZB64DHAS
Manufacturer
Sullins Connector Solutions
Package / Case
Datasheet
Download
Description
CONN EDGE DUAL FML 128POS 0.050
Stock
34,075
In Stock :
34,075

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Sullins Connector Solutions
Product Category :
Edgeboard Connectors
Insertion Force-Max :
4.448 N
Card Thickness :
0.062 1.57mm
Pitch :
0.050 1.27mm
Lead Free :
Contains Lead
Material - Insulation :
Polyphenylene Sulfide (PPS)
Flammability Rating :
UL94 V-0
Reference Standard :
UL, CSA
Insulation Resistance :
5000000000Ohm
Termination :
Solder, Staggered
Contact Finish :
Gold
Card Type :
Non Specified - Dual Edge
Mount :
Through Hole
Gender :
FEMALE
Body Depth :
0.915 inch
Number of Conductors :
ONE
Rated Current (Signal) :
1A
Number Of PCB Rows :
4
Width :
9.4mm
Pbfree Code :
No
Plating Thickness :
10μin
Contact Finish Thickness :
10.0μin 0.25μm
Reliability :
COMMERCIAL
Published :
2003
Body/Shell Style :
Receptacle
Number of Rows :
2
Read Out :
Dual
Operating Temperature :
-65°C~125°C
Packaging :
Tray
HTS Code :
8536.69.40.40
Total Number of Contacts :
128
ECCN Code :
EAR99
RoHS Status :
Non-RoHS Compliant
Length :
103mm
Contact Resistance :
30mOhm
Number of Positions :
128
JESD-609 Code :
e0
Mounting Type :
Through Hole, Right Angle
Connector Type :
Hairpin Bellows
Flange Feature :
Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
Body Breadth :
0.37 inch
Moisture Sensitivity Level (MSL) :
Not Applicable
Contact Type :
Hairpin Bellows
Housing Material :
Plastic
Color :
Black
Height :
15.5mm
Number of Positions/Bay/Row :
64
Contact Material :
Phosphor Bronze
Additional Feature :
NONE
Introducing Edgeboard Connectors Sullins Connector Solutions RZB64DHAS from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-65°C~125°C, Mounting Type:Through Hole, Right Angle, RZB64DHAS pinout, RZB64DHAS datasheet PDF, RZB64DHAS amp .Beyond Edgeboard Connectors Sullins Connector Solutions RZB64DHAS ,we also offer SM3ZS067U215AER1500, 1759547-1, 1-2199230-6, Our vast inventory has you covered. Contact us now for immediate solutions.

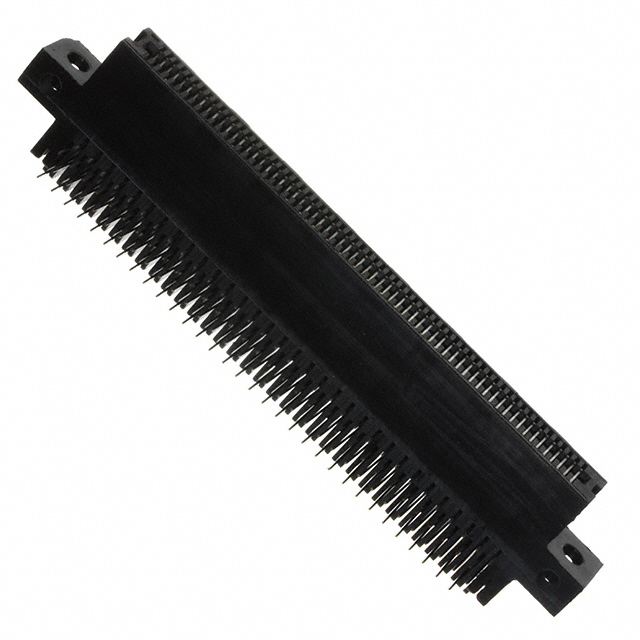

Sullins Connector Solutions RZB64DHAS


Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 128 Positions Polyphenylene Sulfide (PPS)

RZB64DHAS Overview


The material was packaged in accordance with Tray's specifications.We recommend mounting type Through Hole, Right Angle.Using the connector socket Hairpin Bellows is how the device is connected.The following additional features are included in this chip: NONE

RZB64DHAS Features




RZB64DHAS Applications


There are a lot of Sullins Connector Solutions
RZB64DHAS Edgeboard Connectors applications.


  • Digital Multimeters, PLC's (Programming Logic Controllers)
  • RADAR processing, digital oscilloscopes
  • CMOS Image sensors for mobile applications
  • Medical Instrumentation and medical imaging
  • Music recording
  • Digital signal processing
  • Scientific instruments
  • Rotary encoder
  • Displaying
  • Transducer
