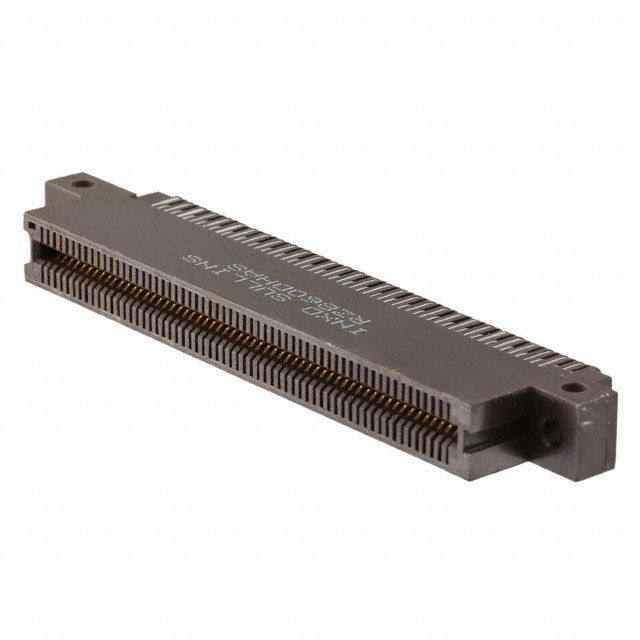

RZB60DHAS
Or copy the link below:
- Mfr.Part #
- RZB60DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 120POS 0.050
- Stock
- 43,552
- In Stock ：
- 43,552
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Body Breadth :
- 0.37 inch
- Termination :
- Solder, Staggered
- Housing Material :
- Plastic
- Contact Material :
- Phosphor Bronze
- Rated Current (Signal) :
- 1A
- Lead Free :
- Contains Lead
- Number Of PCB Rows :
- 4
- Pbfree Code :
- No
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Card Type :
- Non Specified - Dual Edge
- Length :
- 97.5mm
- Gender :
- FEMALE
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Reliability :
- COMMERCIAL
- HTS Code :
- 8536.69.40.40
- Published :
- 2003
- Reference Standard :
- UL, CSA
- Contact Resistance :
- 30mOhm
- Number of Conductors :
- ONE
- Pitch :
- 0.050 1.27mm
- Number of Positions :
- 120
- ECCN Code :
- EAR99
- Connector Type :
- Hairpin Bellows
- Body/Shell Style :
- Receptacle
- Additional Feature :
- NONE
- Contact Finish :
- Gold
- Width :
- 9.4mm
- Contact Type :
- Hairpin Bellows
- Flammability Rating :
- UL94 V-0
- Insertion Force-Max :
- 4.448 N
- Number of Rows :
- 2
- Plating Thickness :
- 10μin
- Height :
- 15.5mm
- Card Thickness :
- 0.062 1.57mm
- Insulation Resistance :
- 5000000000Ohm
- Number of Positions/Bay/Row :
- 60
- RoHS Status :
- Non-RoHS Compliant
- Total Number of Contacts :
- 120
- Mounting Type :
- Through Hole, Right Angle
- Mount :
- Through Hole
- Read Out :
- Dual
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Packaging :
- Tray
- Color :
- Black
- Operating Temperature :
- -65°C~125°C
- JESD-609 Code :
- e0
- Body Depth :
- 0.915 inch
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Datasheets
- RZB60DHAS
Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 120 Positions Polyphenylene Sulfide (PPS)
RZB60DHAS Overview
The material was packaged according to the specifications of Tray.It's recommended you mount it type Through Hole, Right Angle.This device is connected through the connector socket Hairpin Bellows.Additionally, this chip has the following features: NONE
RZB60DHAS Features
RZB60DHAS Applications
There are a lot of Sullins Connector Solutions
RZB60DHAS Edgeboard Connectors applications.
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
