RZB35DHAS

Share

Or copy the link below:

Mfr.Part #
RZB35DHAS
Manufacturer
Sullins Connector Solutions
Package / Case
Datasheet
Download
Description
CONN EDGE DUAL FMALE 70POS 0.050
Stock
48,396
In Stock :
48,396

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Sullins Connector Solutions
Product Category :
Edgeboard Connectors
Contact Finish Thickness :
10.0μin 0.25μm
Pitch :
0.050 1.27mm
Moisture Sensitivity Level (MSL) :
Not Applicable
Flammability Rating :
UL94 V-0
Packaging :
Tray
ECCN Code :
EAR99
Number of Positions :
70
Number of Rows :
2
Body Breadth :
0.37 inch
HTS Code :
8536.69.40.40
Operating Temperature :
-65°C~125°C
Pbfree Code :
No
Mounting Type :
Through Hole, Right Angle
Gender :
FEMALE
Mount :
Through Hole
Insulation Resistance :
5000000000Ohm
Contact Finish :
Gold
Published :
2003
Connector Type :
Hairpin Bellows
Contact Resistance :
30mOhm
JESD-609 Code :
e0
Lead Free :
Contains Lead
Housing Material :
Plastic
Insertion Force-Max :
4.448 N
Material - Insulation :
Polyphenylene Sulfide (PPS)
Number of Positions/Bay/Row :
35
Rated Current (Signal) :
1A
Additional Feature :
NONE
Card Type :
Non Specified - Dual Edge
Width :
9.4mm
Height :
15.5mm
Contact Type :
Hairpin Bellows
Plating Thickness :
10μin
Length :
65.8mm
Reference Standard :
UL, CSA
Number of Conductors :
ONE
Card Thickness :
0.062 1.57mm
Contact Material :
Phosphor Bronze
RoHS Status :
Non-RoHS Compliant
Number Of PCB Rows :
4
Body Depth :
0.915 inch
Termination :
Solder, Staggered
Flange Feature :
Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
Read Out :
Dual
Color :
Black
Total Number of Contacts :
70
Body/Shell Style :
Receptacle
Reliability :
COMMERCIAL
Introducing Edgeboard Connectors Sullins Connector Solutions RZB35DHAS from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-65°C~125°C, Mounting Type:Through Hole, Right Angle, RZB35DHAS pinout, RZB35DHAS datasheet PDF, RZB35DHAS amp .Beyond Edgeboard Connectors Sullins Connector Solutions RZB35DHAS ,we also offer SM3ZS067U215AER1500, 1759547-1, 1-2199230-6, Our vast inventory has you covered. Contact us now for immediate solutions.

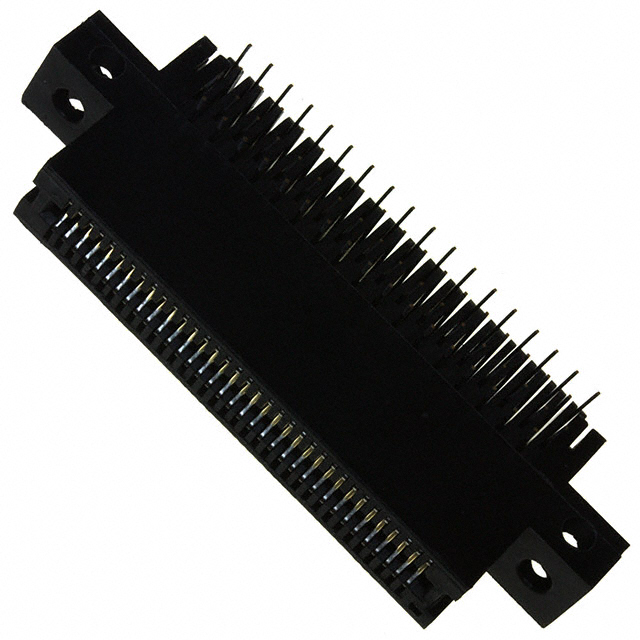

Sullins Connector Solutions RZB35DHAS


Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 70 Positions Polyphenylene Sulfide (PPS)

RZB35DHAS Overview


The material was packaged in accordance with the specifications provided by Tray.You should mount it with type Through Hole, Right Angle.Connecting the device to the connector socket Hairpin Bellows is the method used by the device.There are the following additional features of this chip: NONE

RZB35DHAS Features




RZB35DHAS Applications


There are a lot of Sullins Connector Solutions
RZB35DHAS Edgeboard Connectors applications.


  • Medical Instrumentation and medical imaging
  • Music recording
  • Digital signal processing
  • Scientific instruments
  • Rotary encoder
  • Displaying
  • Transducer
  • Microcontrollers.
  • Digital Storage Oscilloscope
  • Scientific instruments.
