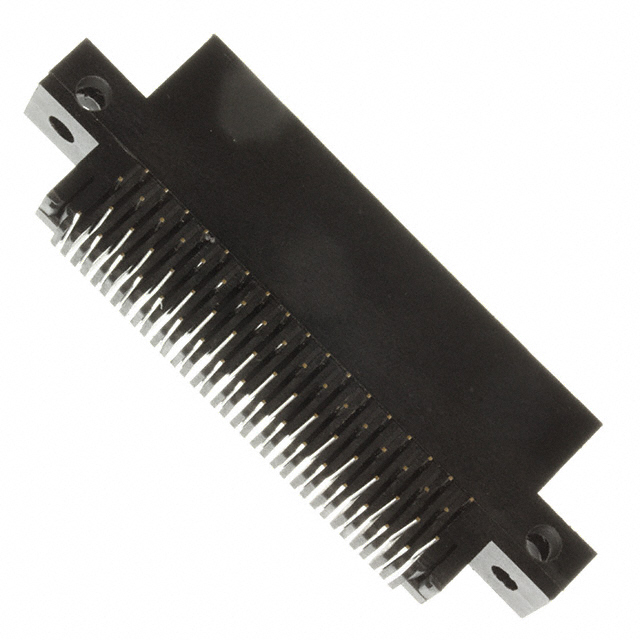

RZB34DHAS
Or copy the link below:
- Mfr.Part #
- RZB34DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 68POS 0.050
- Stock
- 45,903
- In Stock ：
- 45,903
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Body Breadth :
- 0.37 inch
- Number Of PCB Rows :
- 4
- Total Number of Contacts :
- 68
- Published :
- 2003
- JESD-609 Code :
- e0
- Mount :
- Through Hole
- Rated Current (Signal) :
- 1A
- Operating Temperature :
- -65°C~125°C
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Reliability :
- COMMERCIAL
- Contact Material :
- Phosphor Bronze
- Pitch :
- 0.050 1.27mm
- Mounting Type :
- Through Hole, Right Angle
- Packaging :
- Tray
- Housing Material :
- Plastic
- Length :
- 64.5mm
- Insertion Force-Max :
- 4.448 N
- Pbfree Code :
- No
- Insulation Resistance :
- 5000000000Ohm
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Read Out :
- Dual
- Card Type :
- Non Specified - Dual Edge
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Lead Free :
- Contains Lead
- Flammability Rating :
- UL94 V-0
- Additional Feature :
- NONE
- Card Thickness :
- 0.062 1.57mm
- Contact Finish :
- Gold
- Height :
- 15.5mm
- HTS Code :
- 8536.69.40.40
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Color :
- Black
- Contact Resistance :
- 30mOhm
- RoHS Status :
- Non-RoHS Compliant
- Width :
- 9.4mm
- Plating Thickness :
- 10μin
- Number of Rows :
- 2
- Reference Standard :
- UL, CSA
- Body/Shell Style :
- Receptacle
- Connector Type :
- Hairpin Bellows
- Gender :
- FEMALE
- Termination :
- Solder, Staggered
- Contact Type :
- Hairpin Bellows
- Number of Positions/Bay/Row :
- 34
- Number of Conductors :
- ONE
- Number of Positions :
- 68
- Body Depth :
- 0.915 inch
- Datasheets
- RZB34DHAS
RZB34DHAS Documents
Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 68 Positions Polyphenylene Sulfide (PPS)
RZB34DHAS Overview
The material was packaged in accordance with the specifications provided by Tray.You should mount it with type Through Hole, Right Angle.Connecting the device to the connector socket Hairpin Bellows is the method used by the device.There are the following additional features of this chip: NONE
RZB34DHAS Features
RZB34DHAS Applications
There are a lot of Sullins Connector Solutions
RZB34DHAS Edgeboard Connectors applications.
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
