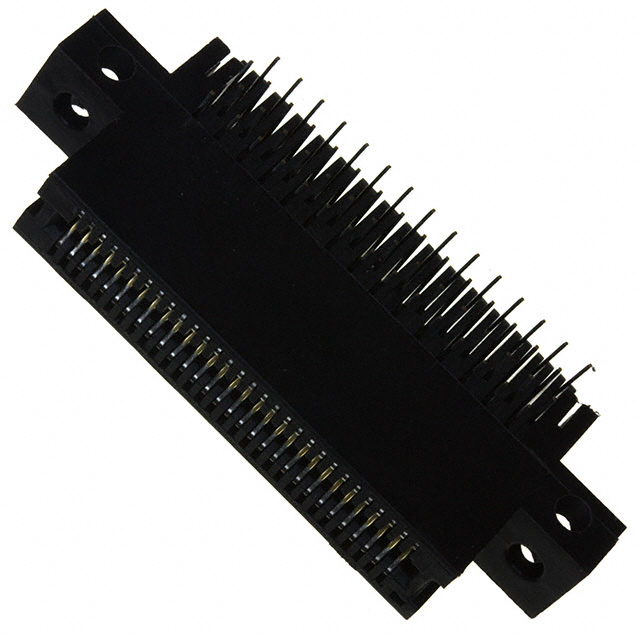

RZB30DHAS
Or copy the link below:
- Mfr.Part #
- RZB30DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 60POS 0.050
- Stock
- 39,391
- In Stock ：
- 39,391
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Card Type :
- Non Specified - Dual Edge
- Mounting Type :
- Through Hole, Right Angle
- RoHS Status :
- Non-RoHS Compliant
- Termination :
- Solder, Staggered
- Packaging :
- Tray
- Contact Type :
- Hairpin Bellows
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Read Out :
- Dual
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Body/Shell Style :
- Receptacle
- Flammability Rating :
- UL94 V-0
- Number of Conductors :
- ONE
- Connector Type :
- Hairpin Bellows
- Reliability :
- COMMERCIAL
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Body Breadth :
- 0.37 inch
- Pbfree Code :
- No
- Mount :
- Through Hole
- Number Of PCB Rows :
- 4
- Insulation Resistance :
- 5000000000Ohm
- Number of Positions/Bay/Row :
- 30
- Total Number of Contacts :
- 60
- Gender :
- FEMALE
- Rated Current (Signal) :
- 1A
- Housing Material :
- Plastic
- Width :
- 9.4mm
- Published :
- 2003
- HTS Code :
- 8536.69.40.40
- Reference Standard :
- UL, CSA
- Plating Thickness :
- 10μin
- ECCN Code :
- EAR99
- Pitch :
- 0.050 1.27mm
- Height :
- 15.5mm
- Lead Free :
- Contains Lead
- JESD-609 Code :
- e0
- Length :
- 59.4mm
- Operating Temperature :
- -65°C~125°C
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Card Thickness :
- 0.062 1.57mm
- Contact Material :
- Phosphor Bronze
- Number of Rows :
- 2
- Color :
- Black
- Contact Finish :
- Gold
- Insertion Force-Max :
- 4.448 N
- Additional Feature :
- NONE
- Body Depth :
- 0.915 inch
- Number of Positions :
- 60
- Datasheets
- RZB30DHAS
RZB30DHAS Documents
Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 60 Positions Polyphenylene Sulfide (PPS)
RZB30DHAS Overview
Material was packaged according to Tray's specifications.It's best to mount type Through Hole, Right Angle.Devices are connected through connector sockets Hairpin Bellows.It is important to note that this chip has the following additional features: NONE
RZB30DHAS Features
RZB30DHAS Applications
There are a lot of Sullins Connector Solutions
RZB30DHAS Edgeboard Connectors applications.
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
