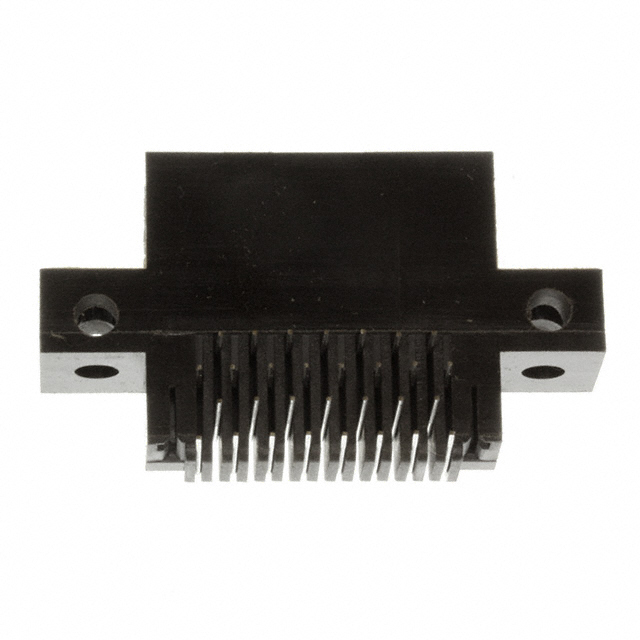

RZB15DHAS
Or copy the link below:
- Mfr.Part #
- RZB15DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 30POS 0.050
- Stock
- 2,856
- In Stock ：
- 2,856
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Published :
- 2011
- Card Thickness :
- 0.062 1.57mm
- Number Of PCB Rows :
- 4
- Read Out :
- Dual
- Total Number of Contacts :
- 30
- Height :
- 15.5mm
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Contact Material :
- Phosphor Bronze
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Pbfree Code :
- No
- Gender :
- FEMALE
- Reliability :
- COMMERCIAL
- Packaging :
- Tray
- Pitch :
- 0.050 1.27mm
- Connector Type :
- Hairpin Bellows
- Plating Thickness :
- 10μin
- HTS Code :
- 8536.69.40.40
- Rated Current (Signal) :
- 1A
- Lead Free :
- Contains Lead
- JESD-609 Code :
- e0
- Flammability Rating :
- UL94 V-0
- Termination :
- Solder, Staggered
- Number of Rows :
- 2
- Card Type :
- Non Specified - Dual Edge
- Reference Standard :
- UL, CSA
- Housing Material :
- Plastic
- Contact Finish :
- Gold
- Contact Type :
- Hairpin Bellows
- RoHS Status :
- Non-RoHS Compliant
- Length :
- 40.4mm
- Number of Conductors :
- ONE
- Mounting Type :
- Through Hole, Right Angle
- Width :
- 9.4mm
- Number of Positions :
- 30
- Color :
- Black
- Insulation Resistance :
- 5000000000Ohm
- Additional Feature :
- NONE
- Mount :
- Through Hole
- Body/Shell Style :
- Receptacle
- ECCN Code :
- EAR99
- Body Breadth :
- 0.37 inch
- Number of Positions/Bay/Row :
- 15
- Insertion Force-Max :
- 4.448 N
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Operating Temperature :
- -65°C~125°C
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Datasheets
- RZB15DHAS
RZB15DHAS Documents
Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 30 Positions Polyphenylene Sulfide (PPS)
RZB15DHAS Overview
Packaging was conducted in accordance with Tray's specifications.A mounting type of Through Hole, Right Angle is recommended.A connector socket Hairpin Bellows is used to connect the device.Additional features of this chip are as follows: NONE
RZB15DHAS Features
RZB15DHAS Applications
There are a lot of Sullins Connector Solutions
RZB15DHAS Edgeboard Connectors applications.
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
