RZB108DHAS

Share

Or copy the link below:

Mfr.Part #
RZB108DHAS
Manufacturer
Sullins Connector Solutions
Package / Case
Datasheet
Download
Description
CONN EDGE DUAL FML 216POS 0.050
Stock
46,831
In Stock :
46,831

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Sullins Connector Solutions
Product Category :
Edgeboard Connectors
Color :
Black
Pitch :
0.050 1.27mm
Flammability Rating :
UL94 V-0
Number of Conductors :
ONE
ECCN Code :
EAR99
Operating Temperature :
-65°C~125°C
Pbfree Code :
No
HTS Code :
8536.69.40.40
Termination :
Solder, Staggered
RoHS Status :
Non-RoHS Compliant
Body Breadth :
0.37 inch
Insertion Force-Max :
4.448 N
JESD-609 Code :
e0
Number of Positions :
216
Additional Feature :
NONE
Length :
158mm
Read Out :
Dual
Mount :
Through Hole
Reference Standard :
UL, CSA
Total Number of Contacts :
216
Body/Shell Style :
Receptacle
Lead Free :
Contains Lead
Contact Finish :
Gold
Reliability :
COMMERCIAL
Mounting Type :
Through Hole, Right Angle
Card Thickness :
0.062 1.57mm
Rated Current (Signal) :
1A
Housing Material :
Plastic
Number of Positions/Bay/Row :
108
Connector Type :
Hairpin Bellows
Plating Thickness :
10μin
Card Type :
Non Specified - Dual Edge
Gender :
FEMALE
Contact Type :
Hairpin Bellows
Moisture Sensitivity Level (MSL) :
Not Applicable
Insulation Resistance :
5000000000Ohm
Flange Feature :
Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
Contact Finish Thickness :
10.0μin 0.25μm
Published :
2011
Body Depth :
0.915 inch
Material - Insulation :
Polyphenylene Sulfide (PPS)
Number of Rows :
2
Contact Resistance :
30mOhm
Packaging :
Tray
Number Of PCB Rows :
4
Height :
15.5mm
Width :
9.4mm
Contact Material :
Phosphor Bronze
Introducing Edgeboard Connectors Sullins Connector Solutions RZB108DHAS from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-65°C~125°C, Mounting Type:Through Hole, Right Angle, RZB108DHAS pinout, RZB108DHAS datasheet PDF, RZB108DHAS amp .Beyond Edgeboard Connectors Sullins Connector Solutions RZB108DHAS ,we also offer SM3ZS067U215AER1500, 1759547-1, 1-2199230-6, Our vast inventory has you covered. Contact us now for immediate solutions.

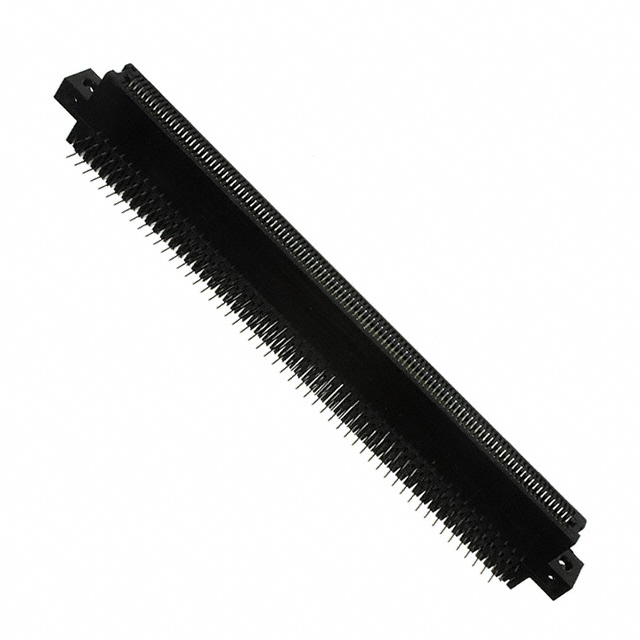

Sullins Connector Solutions RZB108DHAS


Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 216 Positions Polyphenylene Sulfide (PPS)

RZB108DHAS Overview


Packaging was done to Tray's specifications.It is recommended that you mount the device with mounting type Through Hole, Right Angle.Connecting the device to the computer is accomplished by using the connector socket Hairpin Bellows.This chip also features the following additional features: NONE

RZB108DHAS Features




RZB108DHAS Applications


There are a lot of Sullins Connector Solutions
RZB108DHAS Edgeboard Connectors applications.


  • Digital Multimeters, PLC's (Programming Logic Controllers)
  • RADAR processing, digital oscilloscopes
  • CMOS Image sensors for mobile applications
  • Medical Instrumentation and medical imaging
  • Music recording
  • Digital signal processing
  • Scientific instruments
  • Rotary encoder
  • Displaying
  • Transducer
