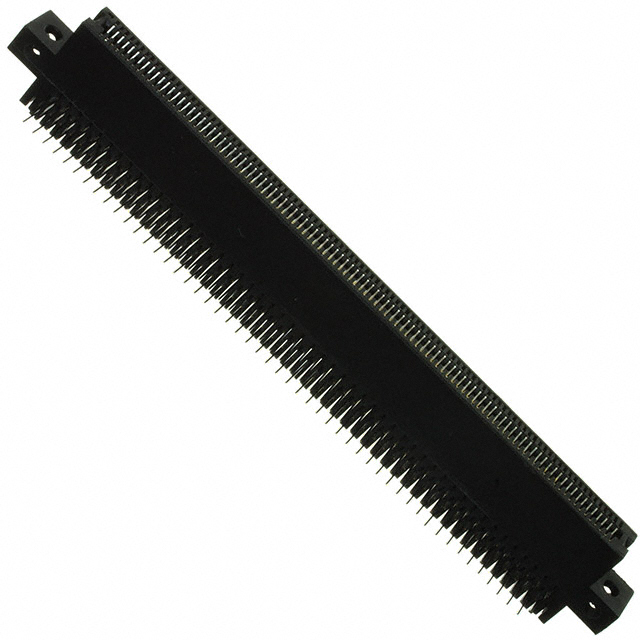

RZB100DHAS
Or copy the link below:
- Mfr.Part #
- RZB100DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 200POS 0.050
- Stock
- 8,031
- In Stock ：
- 8,031
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Number of Conductors :
- ONE
- Number Of PCB Rows :
- 4
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Read Out :
- Dual
- Mounting Type :
- Through Hole, Right Angle
- Body Breadth :
- 0.37 inch
- Plating Thickness :
- 10μin
- Insulation Resistance :
- 5000000000Ohm
- Reliability :
- COMMERCIAL
- Contact Material :
- Phosphor Bronze
- Number of Positions :
- 200
- Packaging :
- Tray
- Gender :
- FEMALE
- Height :
- 15.5mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Number of Positions/Bay/Row :
- 100
- Contact Type :
- Hairpin Bellows
- RoHS Status :
- Non-RoHS Compliant
- Contact Finish :
- Gold
- Card Thickness :
- 0.062 1.57mm
- Body Depth :
- 0.915 inch
- Connector Type :
- Hairpin Bellows
- Reference Standard :
- UL, CSA
- Length :
- 148mm
- Termination :
- Solder, Staggered
- Published :
- 2003
- Contact Resistance :
- 30mOhm
- ECCN Code :
- EAR99
- HTS Code :
- 8536.69.40.40
- Additional Feature :
- NONE
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Body/Shell Style :
- Receptacle
- JESD-609 Code :
- e0
- Total Number of Contacts :
- 200
- Number of Rows :
- 2
- Operating Temperature :
- -65°C~125°C
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Pitch :
- 0.050 1.27mm
- Width :
- 9.4mm
- Rated Current (Signal) :
- 1A
- Flammability Rating :
- UL94 V-0
- Card Type :
- Non Specified - Dual Edge
- Pbfree Code :
- No
- Housing Material :
- Plastic
- Insertion Force-Max :
- 4.448 N
- Mount :
- Through Hole
- Color :
- Black
- Lead Free :
- Contains Lead
- Datasheets
- RZB100DHAS
RZB100DHAS Documents
Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 200 Positions Polyphenylene Sulfide (PPS)
RZB100DHAS Overview
We packaged the material in accordance with Tray's specifications.The mount type Through Hole, Right Angle is recommended.The device is connected with the connector socket Hairpin Bellows.It has the following additional features: NONE
RZB100DHAS Features
RZB100DHAS Applications
There are a lot of Sullins Connector Solutions
RZB100DHAS Edgeboard Connectors applications.
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
- Data Acquisition Systems
