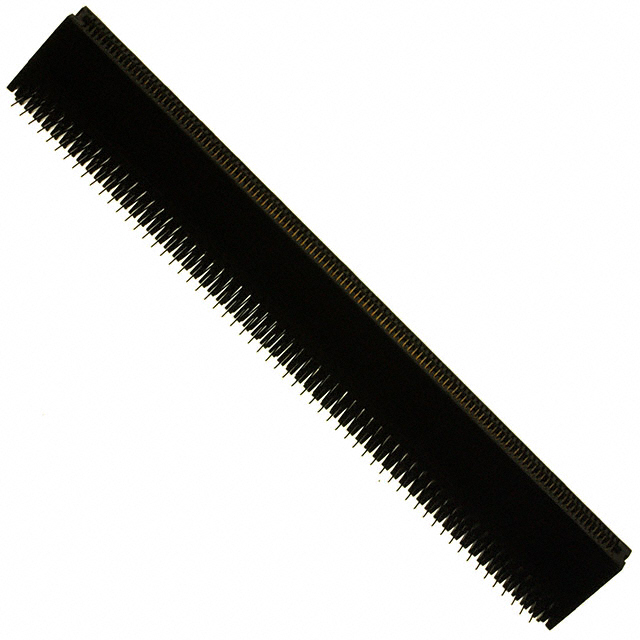

RZB120DHAN
Or copy the link below:
- Mfr.Part #
- RZB120DHAN
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 240POS 0.050
- Stock
- 2,653
- In Stock ：
- 2,653
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Width :
- 9.4mm
- Height :
- 15.5mm
- Number of Positions :
- 240
- Flammability Rating :
- UL94 V-0
- Length :
- 174mm
- Contact Finish :
- Gold
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Number Of PCB Rows :
- 4
- Card Type :
- Non Specified - Dual Edge
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Lead Free :
- Contains Lead
- Color :
- Black
- Number of Positions/Bay/Row :
- 120
- Number of Rows :
- 2
- JESD-609 Code :
- e0
- Body/Shell Style :
- Receptacle
- Pitch :
- 0.050 1.27mm
- Additional Feature :
- NONE
- Gender :
- FEMALE
- Reference Standard :
- UL, CSA
- Pbfree Code :
- No
- Contact Type :
- Hairpin Bellows
- Insertion Force-Max :
- 4.448 N
- Connector Type :
- Hairpin Bellows
- Number of Conductors :
- ONE
- Contact Resistance :
- 30mOhm
- Rated Current (Signal) :
- 1A
- Contact Material :
- Phosphor Bronze
- Mount :
- Through Hole
- Reliability :
- COMMERCIAL
- RoHS Status :
- Non-RoHS Compliant
- HTS Code :
- 8536.69.40.40
- Packaging :
- Tray
- Operating Temperature :
- -65°C~125°C
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Termination :
- Solder, Staggered
- Read Out :
- Dual
- Body Breadth :
- 0.37 inch
- Total Number of Contacts :
- 240
- Card Thickness :
- 0.062 1.57mm
- ECCN Code :
- EAR99
- Housing Material :
- Plastic
- Mounting Type :
- Through Hole, Right Angle
- Body Depth :
- 0.915 inch
- Published :
- 2011
- Plating Thickness :
- 10μin
- Insulation Resistance :
- 5000000000Ohm
- Datasheets
- RZB120DHAN
Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 240 Positions Polyphenylene Sulfide (PPS)
RZB120DHAN Overview
As per Tray's specifications, the material was packaged.Mounting type Through Hole, Right Angle is recommended.Using the connector socket Hairpin Bellows is the device's method of connection.Please take note of the following additional features of this chip: NONE
RZB120DHAN Features
RZB120DHAN Applications
There are a lot of Sullins Connector Solutions
RZB120DHAN Edgeboard Connectors applications.
