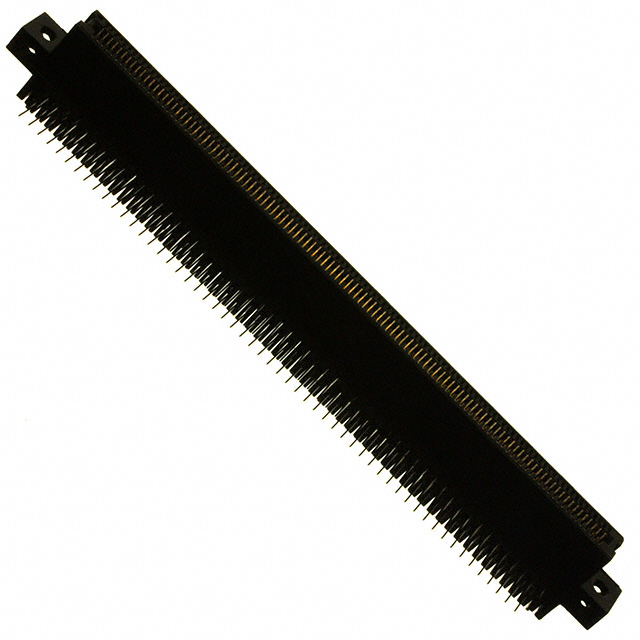

RZB110DHAS
Or copy the link below:
- Mfr.Part #
- RZB110DHAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 220POS 0.050
- Stock
- 2,983
- In Stock ：
- 2,983
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Pitch :
- 0.050 1.27mm
- Insulation Resistance :
- 5000000000Ohm
- Card Type :
- Non Specified - Dual Edge
- Card Thickness :
- 0.062 1.57mm
- Number of Positions :
- 220
- RoHS Status :
- Non-RoHS Compliant
- Mounting Type :
- Through Hole, Right Angle
- Rated Current (Signal) :
- 1A
- Number of Rows :
- 2
- Color :
- Black
- Reliability :
- COMMERCIAL
- Pbfree Code :
- No
- Connector Type :
- Hairpin Bellows
- Packaging :
- Tray
- Contact Material :
- Phosphor Bronze
- JESD-609 Code :
- e0
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Total Number of Contacts :
- 220
- Length :
- 161mm
- Number of Conductors :
- ONE
- Published :
- 2003
- Body Depth :
- 0.915 inch
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Housing Material :
- Plastic
- ECCN Code :
- EAR99
- Number Of PCB Rows :
- 4
- Number of Positions/Bay/Row :
- 110
- Gender :
- FEMALE
- Lead Free :
- Contains Lead
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Contact Finish :
- Gold
- Mount :
- Through Hole
- Contact Resistance :
- 30mOhm
- HTS Code :
- 8536.69.40.40
- Additional Feature :
- NONE
- Width :
- 9.4mm
- Operating Temperature :
- -65°C~125°C
- Height :
- 15.5mm
- Termination :
- Solder, Staggered
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Body/Shell Style :
- Receptacle
- Contact Type :
- Hairpin Bellows
- Flammability Rating :
- UL94 V-0
- Body Breadth :
- 0.37 inch
- Read Out :
- Dual
- Reference Standard :
- UL, CSA
- Plating Thickness :
- 10μin
- Insertion Force-Max :
- 4.448 N
- Datasheets
- RZB110DHAS
RZB110DHAS Documents
Female Black 0.050 1.27mm Phosphor Bronze 2 Rows Tray Solder, Staggered Gold 220 Positions Polyphenylene Sulfide (PPS)
RZB110DHAS Overview
Packing was done according to Tray's specs.It is recommended to use mounting type Through Hole, Right Angle.Connecting the device is accomplished through the connector socket Hairpin Bellows.Several additional features of this chip should be noted: NONE
RZB110DHAS Features
RZB110DHAS Applications
There are a lot of Sullins Connector Solutions
RZB110DHAS Edgeboard Connectors applications.
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
