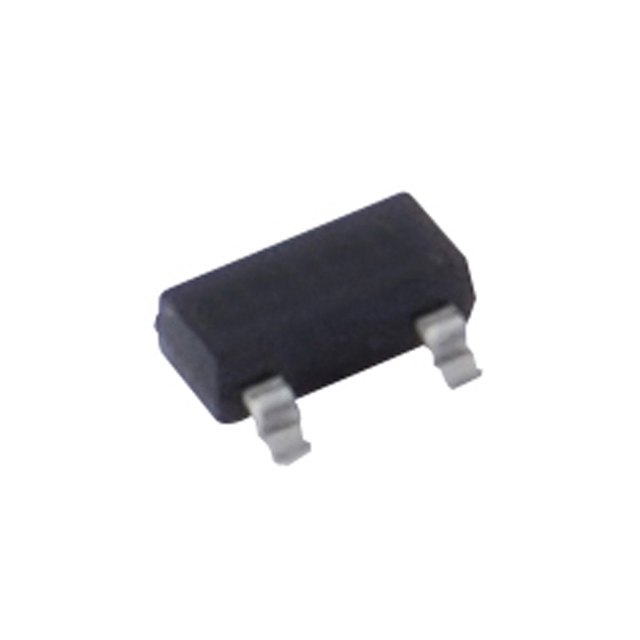

NTE595

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Arrays

Output Current-Max :

15 A

Series :

-

Diode Type :

Standard

Current - Average Rectified (Io) :

15A

Package Shape :

Round

Voltage - DC Reverse (Vr) (Max) :

500 V

Rep Pk Reverse Voltage-Max :

500 V

Surface Mount :

No

Package / Case :

DO-203AA, DO-5, Stud

Configuration :

Single

Capacitance @ Vr, F :

-

Speed :

Standard Recovery >500ns, > 200mA (Io)

Number of Phases :

1

JESD-30 Code :

O-MUPM-D1

Reach Compliance Code :

Unknown

Terminal Position :

UPPER

Voltage - Forward (Vf) (Max) @ If :

1.5 V @ 15 A

Application :

Power

Diode Element Material :

SILICON

Terminal Form :

Solder Lug

Current - Reverse Leakage @ Vr :

10 mA @ 500 V

HTS Code :

8541.10.00.80

ECCN Code :

EAR99

Qualification Status :

Not Qualified

Number of Terminals :

1

Additional Feature :

High Reliability

Mounting Type :

Stud Mount

Subcategory :

Rectifier Diodes

Product Status :

Active

Package :

Bag

Manufacturer :

NTE Electronics

Number of Elements :

1

Supplier Device Package :

DO-5

Case Connection :

CATHODE

Operating Temperature - Junction :

-65°C ~ 175°C

Non-rep Pk Forward Current-Max :

297 A
