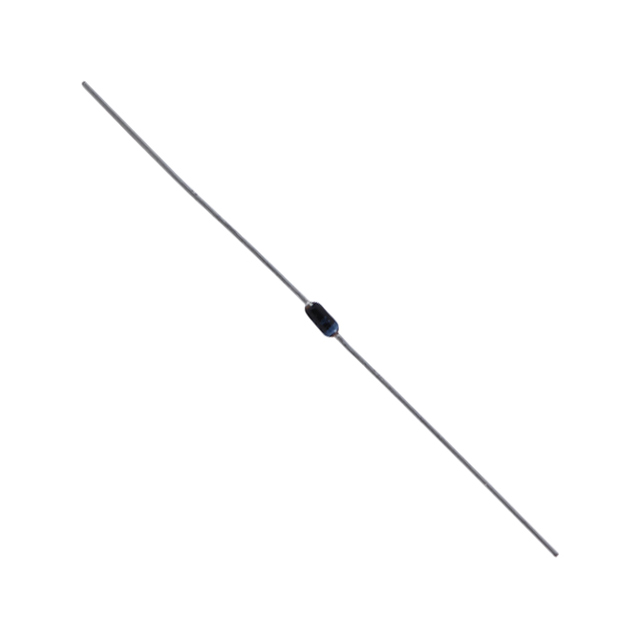

NTE5000A

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Zener - Single

JEDEC-95 Code :

DO-35

Qualification Status :

Not Qualified

Package :

Bag

Mounting Type :

Through Hole

Series :

-

Diode Type :

ZENER DIODE

Tolerance :

5 %

Number of Terminals :

2

ECCN Code :

EAR99

Surface Mount :

No

Polarity :

Unidirectional

Diode Element Material :

SILICON

Package / Case :

DO-204AH, DO-35, Axial

Product Status :

Active

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Voltage - Zener (Nom) (Vz) :

2.4 V

Terminal Position :

Axial

Package Shape :

Round

Working Test Current :

20 mA

Impedance (Max) (Zzt) :

30 Ohms

Voltage Tol-Max :

5%

JESD-30 Code :

O-PALF-W2

Manufacturer :

NTE Electronics

Power - Max :

500 mV

Supplier Device Package :

DO-35

HTS Code :

8541.10.00.50

Terminal Form :

Wire

Operating Temperature :

-65°C ~ 200°C

Number of Elements :

1

Technology :

Zener

Subcategory :

Voltage Reference Diodes

Configuration :

Single

Reach Compliance Code :

Unknown

Case Connection :

Isolated

Power Dissipation-Max :

0.5 W

Wattage :

0.5 W

Forward Voltage :

1.1 V

Test Current :

20 mA
