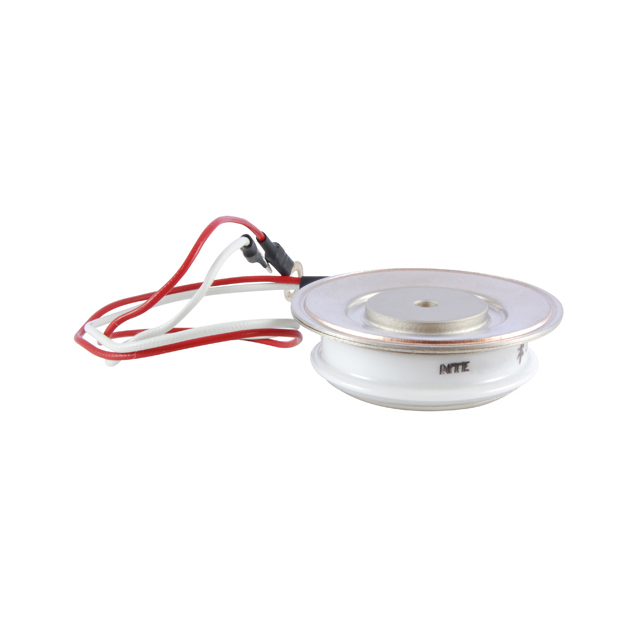

NTE5591

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

Current - Non Rep. Surge 50, 60Hz (Itsm) :

4650A, 5120A

DC Gate Trigger Current-Max :

150 mA

Product Status :

Active

Number of Elements :

1

DC Gate Trigger Voltage-Max :

3 V

Package / Case :

TO-200AB, A-PUK

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Current - Off State (Max) :

20 mA

Voltage - Gate Trigger (Vgt) (Max) :

3 V

Trigger Device Type :

SCR

Surface Mount :

yes

Current - Gate Trigger (Igt) (Max) :

150 mA

Current - Hold (Ih) (Max) :

600 mA

Voltage - Off State :

600 V

Manufacturer :

NTE Electronics

Repetitive Peak Off-state Voltage :

600 V

Repetitive Peak Reverse Voltage :

600 V

RMS On-state Current-Max :

780 A

Non-Repetitive Pk On-state Cur :

5500 A

Mounting Type :

Chassis Mount

HTS Code :

8541.30.00.80

Number of Terminals :

4

Subcategory :

Silicon Controlled Rectifiers

Reach Compliance Code :

Unknown

Voltage - On State (Vtm) (Max) :

1.75 V

Series :

-

Current - On State (It (AV)) (Max) :

470 A

Configuration :

Single

Current - On State (It (RMS)) (Max) :

780 A

Terminal Position :

END

Number of Pins :

3

JESD-30 Code :

O-CEDB-X4

Terminal Form :

UNSPECIFIED

Package :

Bag

Package Shape :

Round

Supplier Device Package :

TO-200AB

SCR Type :

Standard Recovery

RoHS :

Compliant

Operating Temperature :

-40°C ~ 125°C

Qualification Status :

Not Qualified
