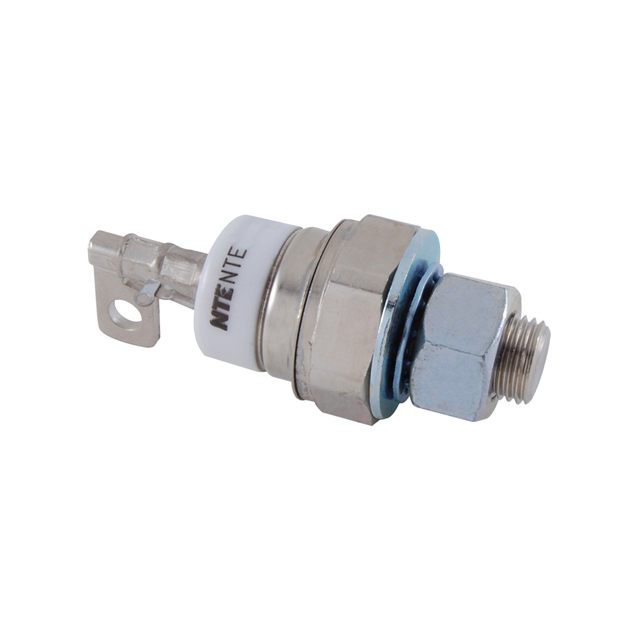

NTE5577

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

Number of Terminals :

2

Mounting Type :

Stud Mount

Voltage - Off State :

600 V

Current - Gate Trigger (Igt) (Max) :

125 mA

DC Gate Trigger Current-Max :

125 mA

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Operating Temperature :

-40°C ~ 125°C (TJ)

Supplier Device Package :

TO-83

Trigger Device Type :

SCR

Surface Mount :

No

Terminal Position :

UPPER

Number of Pins :

3

Product Status :

Active

RoHS :

Compliant

Max Repetitive Reverse Voltage (Vrrm) :

600 V

Package :

Bag

Repetitive Peak Off-state Voltage :

600 V

Current - Non Rep. Surge 50, 60Hz (Itsm) :

1400A, 1500A

Configuration :

Single

Package Shape :

Round

RMS On-state Current-Max :

125 A

Series :

-

Max Operating Temperature :

125 °C

Terminal Form :

UNSPECIFIED

Qualification Status :

Not Qualified

Case Connection :

ANODE

REACH SVHC :

No SVHC

Number of Elements :

1

RMS Current (Irms) :

125 A

Package / Case :

TO-208AD, TO-83-3, Stud

Voltage - On State (Vtm) (Max) :

2 V

JEDEC-95 Code :

TO-83

Manufacturer :

NTE Electronics

Min Operating Temperature :

-40 °C

DC Gate Trigger Voltage-Max :

3 V

Current - On State (It (AV)) (Max) :

70 A

Non-Repetitive Pk On-state Cur :

1600 A

Subcategory :

Silicon Controlled Rectifiers

HTS Code :

8541.30.00.80

Mount :

Stud

Current - On State (It (RMS)) (Max) :

125 A

SCR Type :

Standard Recovery

JESD-30 Code :

O-MUPM-X2

Reach Compliance Code :

Unknown

Voltage - Gate Trigger (Vgt) (Max) :

200 mV

Repetitive Peak Reverse Voltage :

600 V
