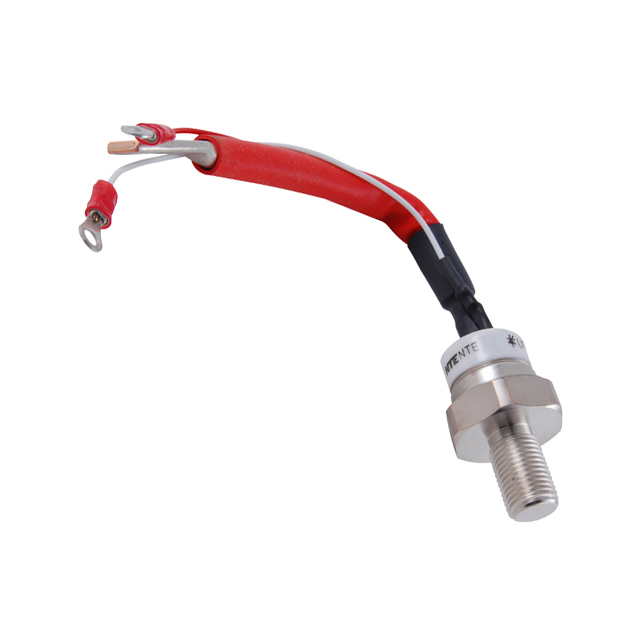

NTE5574

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

Product Status :

Active

Current - Hold (Ih) (Max) :

150 mA

Current - Non Rep. Surge 50, 60Hz (Itsm) :

1600A, 1900A

Current - Gate Trigger (Igt) (Max) :

120 mA

Operating Temperature :

-40°C ~ 125°C (TJ)

Current - Off State (Max) :

15 mA

Mount :

Stud

Reach Compliance Code :

Unknown

RMS On-state Current-Max :

125 A

Hold Current :

150 mA

Configuration :

Single

Number of Pins :

4

JEDEC-95 Code :

TO-94

Supplier Device Package :

TO-94

RoHS :

Compliant

SCR Type :

Standard Recovery

Max Operating Temperature :

125 °C

Current - On State (It (RMS)) (Max) :

125 A

Repetitive Peak Off-state Voltage :

1200 V

Terminal Form :

HIGH CURRENT CABLE

JESD-30 Code :

O-MUPM-H3

Terminal Position :

UPPER

Min Operating Temperature :

-40 °C

Number of Elements :

1

Non-Repetitive Pk On-state Cur :

1800 A

Voltage - Gate Trigger (Vgt) (Max) :

2.5 V

Current - On State (It (AV)) (Max) :

80 A

Case Connection :

ANODE

Subcategory :

Silicon Controlled Rectifiers

RMS Current (Irms) :

125 A

Package / Case :

TO-209AC, TO-94-4, Stud

Series :

-

Max Repetitive Reverse Voltage (Vrrm) :

1.2 kV

Number of Terminals :

3

Surface Mount :

No

DC Gate Trigger Voltage-Max :

3 V

Voltage Rating (DC) :

1.2 kV

Voltage - Off State :

1.2 kV

REACH SVHC :

Unknown

Voltage - On State (Vtm) (Max) :

1.6 V

HTS Code :

8541.30.00.80

Mounting Type :

Stud Mount

Current Rating :

125 A

Package Shape :

Round

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Trigger Device Type :

SCR

DC Gate Trigger Current-Max :

120 mA

Qualification Status :

Not Qualified

Repetitive Peak Reverse Voltage :

1200 V

Manufacturer :

NTE Electronics

Package :

Bag
