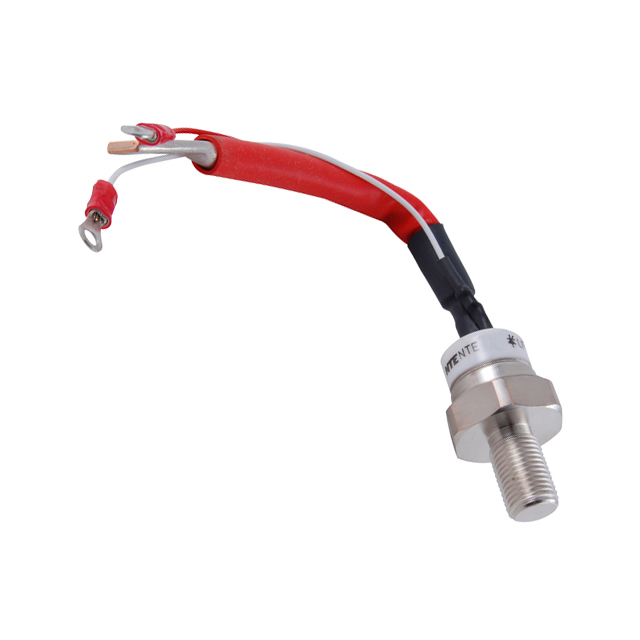

NTE5572

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

Current - Off State (Max) :

15 mA

Supplier Device Package :

TO-94

DC Gate Trigger Current-Max :

120 mA

Operating Temperature :

-40°C ~ 125°C (TJ)

DC Gate Trigger Voltage-Max :

3 V

Package :

Bag

Terminal Position :

UPPER

Configuration :

Single

RMS On-state Current-Max :

125 A

Package / Case :

TO-209AC, TO-94-4, Stud

Mounting Type :

Stud Mount

Max Operating Temperature :

125 °C

Number of Pins :

4

Number of Elements :

1

Voltage - Gate Trigger (Vgt) (Max) :

2.5 V

Series :

-

Max Repetitive Reverse Voltage (Vrrm) :

600 V

Number of Terminals :

3

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Current - On State (It (RMS)) (Max) :

125 A

RoHS :

Compliant

JESD-30 Code :

O-MUPM-H3

Qualification Status :

Not Qualified

Package Shape :

Round

Subcategory :

Silicon Controlled Rectifiers

Mount :

Stud

SCR Type :

Standard Recovery

JEDEC-95 Code :

TO-94

Repetitive Peak Off-state Voltage :

600 V

Surface Mount :

No

Terminal Form :

HIGH CURRENT CABLE

Voltage - On State (Vtm) (Max) :

1.6 V

Trigger Device Type :

SCR

Min Operating Temperature :

-40 °C

Manufacturer :

NTE Electronics

Voltage - Off State :

600 V

Reach Compliance Code :

Unknown

Current - On State (It (AV)) (Max) :

80 A

Product Status :

Active

Case Connection :

ANODE

Current - Hold (Ih) (Max) :

150 mA

Non-Repetitive Pk On-state Cur :

1800 A

Current - Non Rep. Surge 50, 60Hz (Itsm) :

1600A, 1900A

Repetitive Peak Reverse Voltage :

600 V

Current - Gate Trigger (Igt) (Max) :

120 mA

HTS Code :

8541.30.00.80
