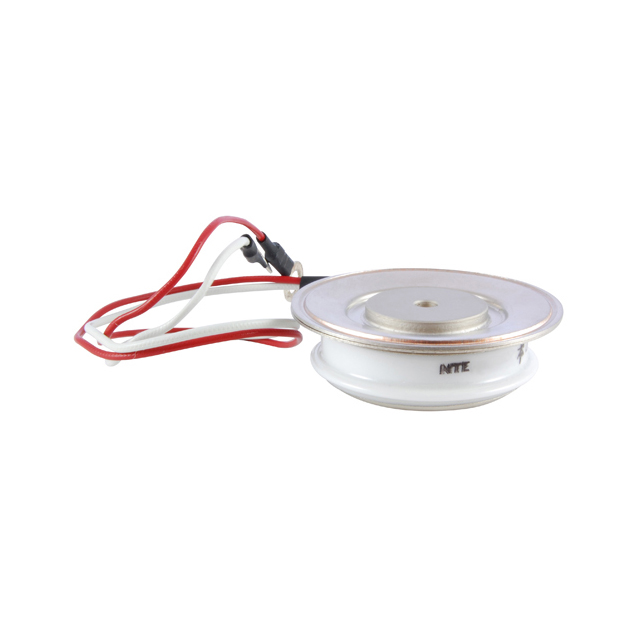

NTE5551

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

Number of Elements :

1

Voltage - Off State :

600 V

Configuration :

Single

Manufacturer :

NTE Electronics

Subcategory :

Silicon Controlled Rectifiers

Package Shape :

Round

Operating Temperature :

-40°C ~ 125°C

Critical Rate of Rise of Off-State Voltage-Min :

200 V/us

Number of Terminals :

4

Min Operating Temperature :

-40 °C

Current - On State (It (AV)) (Max) :

390 A

Mounting Type :

Chassis Mount

Number of Pins :

3

RMS On-state Current-Max :

780 A

Surface Mount :

yes

Current - Non Rep. Surge 50, 60Hz (Itsm) :

46500A @ 60Hz

Max Repetitive Reverse Voltage (Vrrm) :

600 V

Supplier Device Package :

TO-200AB

Repetitive Peak Reverse Voltage :

600 V

SCR Type :

Standard Recovery

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

HTS Code :

8541.30.00.80

RoHS :

Compliant

DC Gate Trigger Current-Max :

150 mA

Reach Compliance Code :

Unknown

Product Status :

Active

Max Operating Temperature :

150 °C

Current - Off State (Max) :

20 mA

DC Gate Trigger Voltage-Max :

3 V

Trigger Device Type :

SCR

Repetitive Peak Off-state Voltage :

600 V

Current - On State (It (RMS)) (Max) :

780 A

Terminal Position :

END

Current - Gate Trigger (Igt) (Max) :

150 mA

Current - Hold (Ih) (Max) :

600 mA

Non-Repetitive Pk On-state Cur :

4650 A

Qualification Status :

Not Qualified

Series :

-

Terminal Form :

UNSPECIFIED

Package :

Bag

Voltage - Gate Trigger (Vgt) (Max) :

3 V

Mount :

Screw

Holding Current-Max :

600 mA

Package / Case :

TO-200AB, A-PUK

JESD-30 Code :

O-CEDB-X4

Voltage - On State (Vtm) (Max) :

1.75 V
